Tinysine
Potentiometer Kit v2 for DSP Amplifier
Potentiometer Kit v2 for DSP Amplifier
Regular price
$9.50 USD
Regular price
Sale price
$9.50 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
No reviews
This is a upgraded version potentiometer kit. It can work with our DSP audio amplifier board and control the audio volume/Bass/Middle/Treble by rotating a real knob. There are 4 potentiometer modules and one adapter board in this kit. Each potentiometer module has a 10K potentiometer on the board. Module size 20.5mm x12.5mm.Potentiometer shaft diameter is 6.75mm.

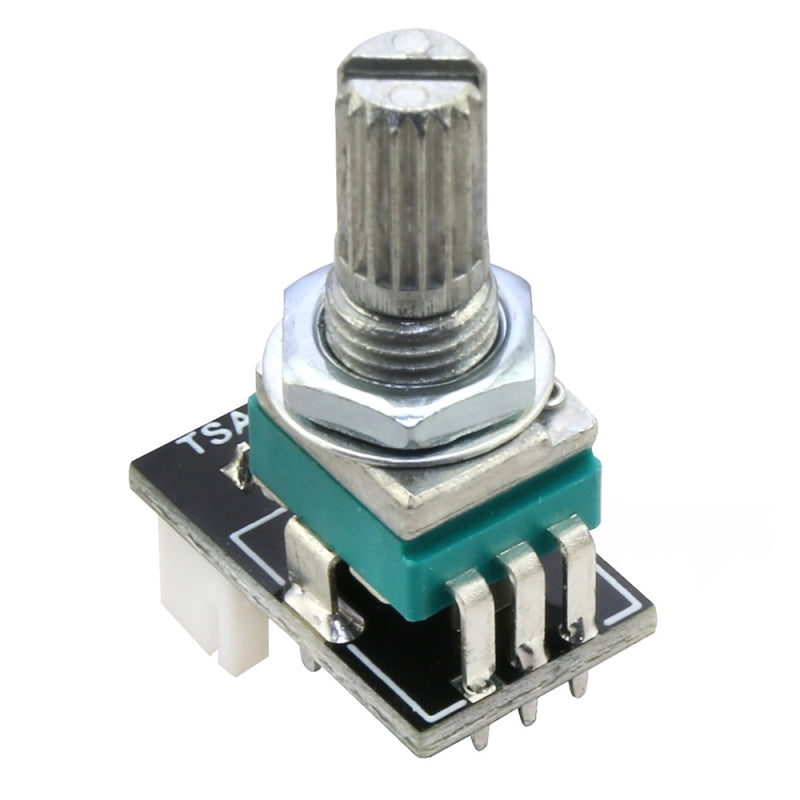

TSA1301 potentiometer module has a smaller size compared to the TSA1300. User can fix it on panel with the potentiometer nut.
Warning: When you use this kit with TSA1701 and TSA1702, you need to disconnect the soldering pads on the board back side first, otherwise the ADC port may get burned.
What's included:
- DSP convert board x 1
- TSA1301 Potentiometer module x 4
- JST XH 6-pin cable x 1
- JST XH 3-pin cable x 4
