Tinysine
Potentiometer Kit for DSP Amplifier
Potentiometer Kit for DSP Amplifier
Regular price
$9.50 USD
Regular price
Sale price
$9.50 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
This is a potentiometer kit. It can work with our DSP audio amplifier board and control the audio volume/Bass/Middle/Treble by rotating a real knob. There are 4 potentiometer modules and one adapter board in this kit. Each potentiometer module has a 10K potentiometer on the board. Module size 6cm x 3.5cm.
Warning: When you use this kit with TSA1701, you need to disconnect the soldering pads on the board back side first, otherwise the ADC port may get burned.
What's included:

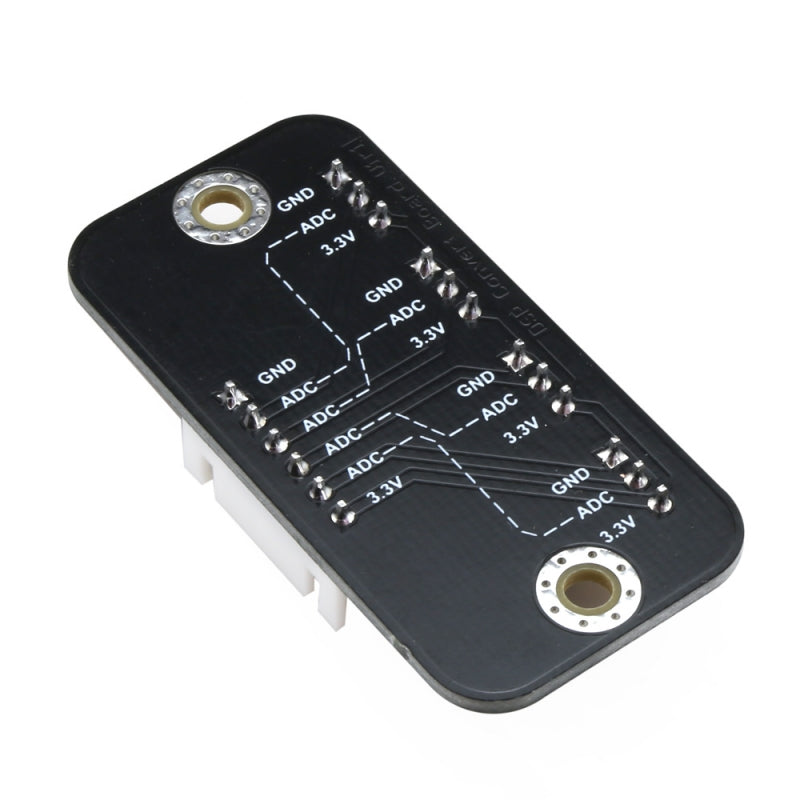

- DSP convert board x 1
- TSA1300 Potentiometer module x 4
- JST XH 6-pin cable x 1
- JST XH 3-pin cable x 4
