TSA7010 - Digital Bluetooth Audio Receiver Board(I2S+DAC)

This digtial Bluetooth music receiver connects to the Line-In or Aux input on your home audio system. You can then stream audio from your Bluetooth enabled cell phone or mp3 player to your home audio system. Enjoy the convenience of having your music source in the palm of your hand and listening to it through your home stereo.

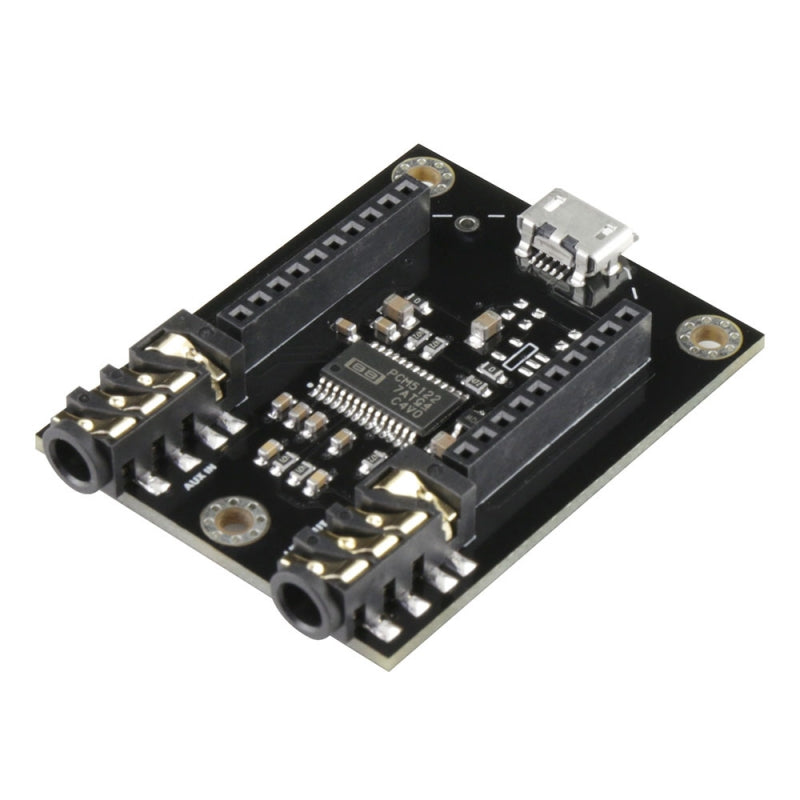

It comes with a I2S output digital AudioB plus Bluetooth module, and I2S digital output. Music resampling frequency is 48KHz. And it supports Apt-X, and it is based on CSRA64215. The base board is a DAC(PCM5122PWR) board which convert the I2S digital audio to analog output.

Note : TSA7010 can automatically detect the Aux in/Line in Audio input. Bluetooth Audio source has higher priority. When Bluetooth audio is paused or Bluetooth is disconnected. TSA7010 will output the Aux in/Line in audio.

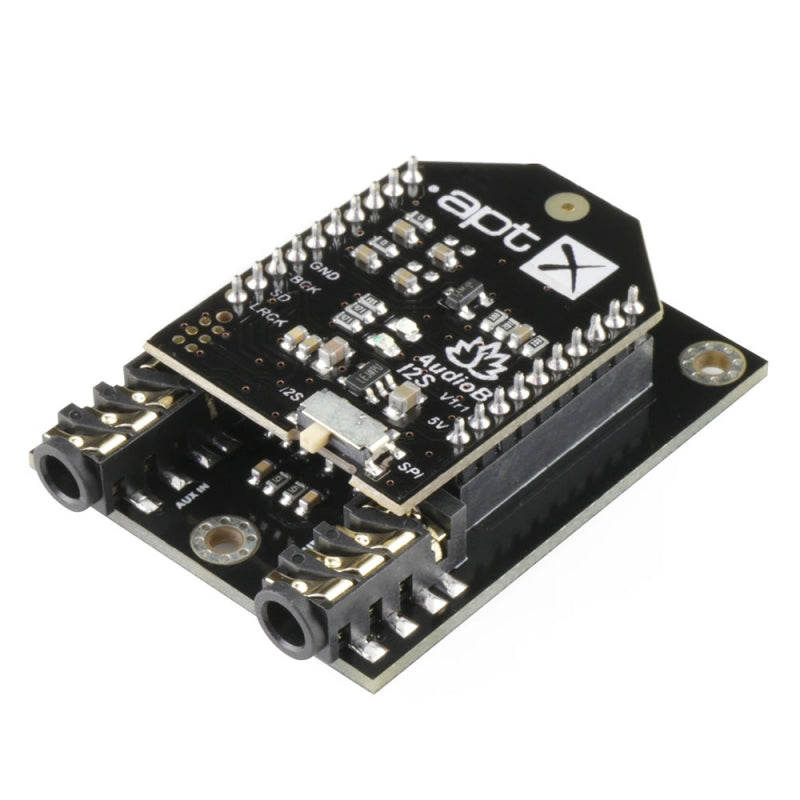

Note : You need to set the on board switch to SPI when you program the module

Features:

• Size: 42*32*11mm
• Bluetooth 5.0
• Apt-X supported
• Stereo receive
• Effective transmission distance: 10-15m

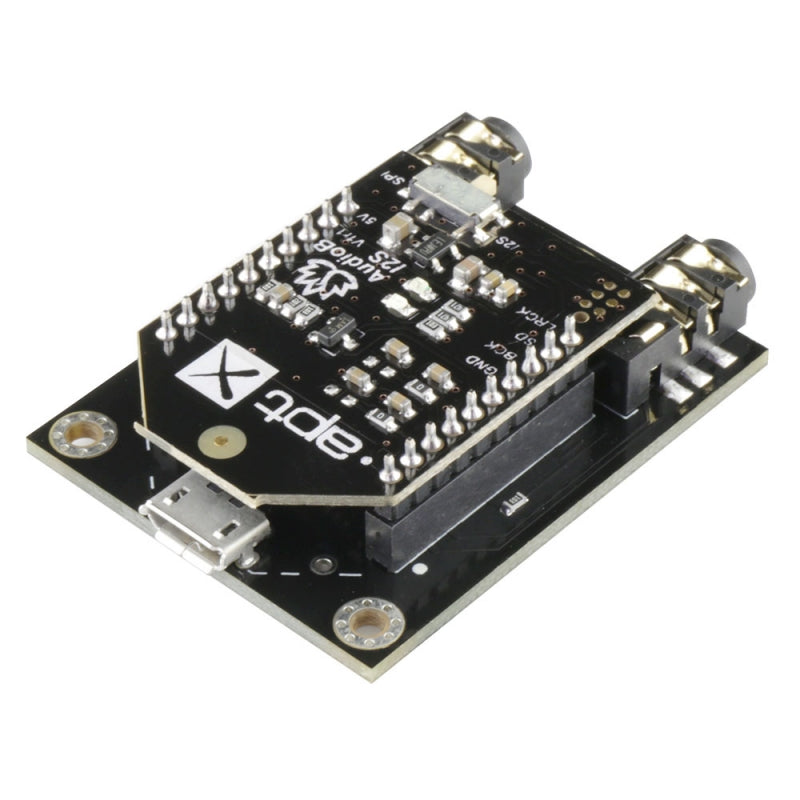

• Micro USB female port for powering the receiver from any USB power source(5VDC)
• Compatible with all Bluetooth devices that support media audio, including iPhone

Documents:

• How to change the BT name
• Bluesuite2.5.0
• Firmware(I2S)
