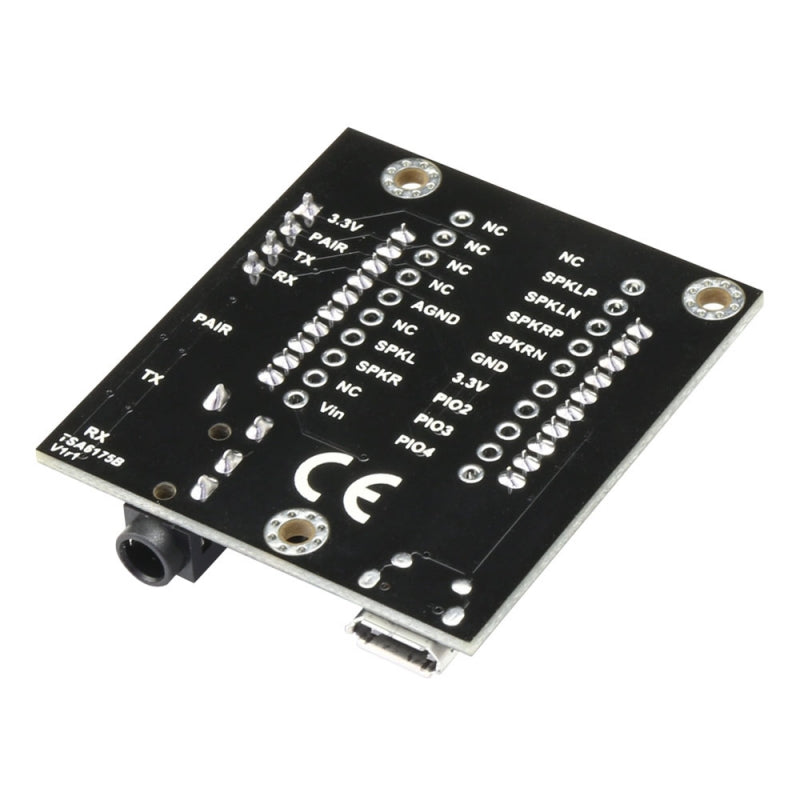

TSA6175 - Bluetooth 5.0 Multipoint Audio Receiver

TSA6175 - Bluetooth 5.0 Multipoint Audio Receiver

Regular price $22.95 USD
Regular price Sale price $22.95 USD
Sale Sold out
Shipping calculated at checkout.

TSA6175 is a Bluetooth 5 multipoint audio receiver. You can have many TSA6175 paired and work together. You can also let it works like a normal Bluetooth audio receiver. This Bluetooth music receiver connects to the Line-In or Aux input on your home audio system. You can then stream audio from your Bluetooth enabled cell phone or mp3 player to your home audio system. Enjoy the convenience of having your music source in the palm of your hand and listening to it through your home stereo.


If you have audio systems in different rooms. You can use multiple TSA6175 audio receiver board connect all of them together. When your smartphone connect to the master module and play music, all audio systems have audio out. TSA6175 can remember the pairing info. You don't need pair them each time you turn the module on.



One board works like a normal receiver

Multiple boards work together


How to Use:

Master module:

  1. Power up the module, Blue LED slow blink.
  2. Double click S1 to set the module into Pairing mode. Blue LED fast blink. (Voice: Pairing)
  3. Now, Your smartphone will be able to find a new Bluetooth device which name is "CSR8675". Connect it.
  4. You can play the music now. If you only use one module as a normal receiver. You don't need do the following steps.
  5. Click S2, Set the module to transmitter mode.(Voice: transmitter mode)

Slave module:

  1. Power up the module. Blue LED slow blink.
  2. Make sure master module already working correct and in transmitter mode. Click S3 to set salve module into receiver mode. It will auto searching the master module. (Voice: receiver mode, searching)
  3. Double click the S2 on the Master module. The master module will auto searching(30s) slave module. Both master and slave module will be connected. (Voice: searching)
  4. The slave module will bave music out now.
  5. If there have new module want join as slave modue. Just click S3 on new module and Double click S2 on Master module.
  6. If a slave module want quit. Click S2 on that module.


Note: If you don't hear the voice prompt when click S2. Please click the S3 to switching the mode and then click S2 again.



  • Size: 44*38*11mm
  • Multipoint connection
  • Bluetooth 5.0
  • Qualcomm cVc audio technology
  • Qualcomm TrueWireless Technology
  • Stereo receive
  • Effective transmission distance: 10-15m
  • Mcro USB female port for powering the receiver from any USB power source(5VDC)
  • Compatible with all Bluetooth devices that support media audio, including iPhone
