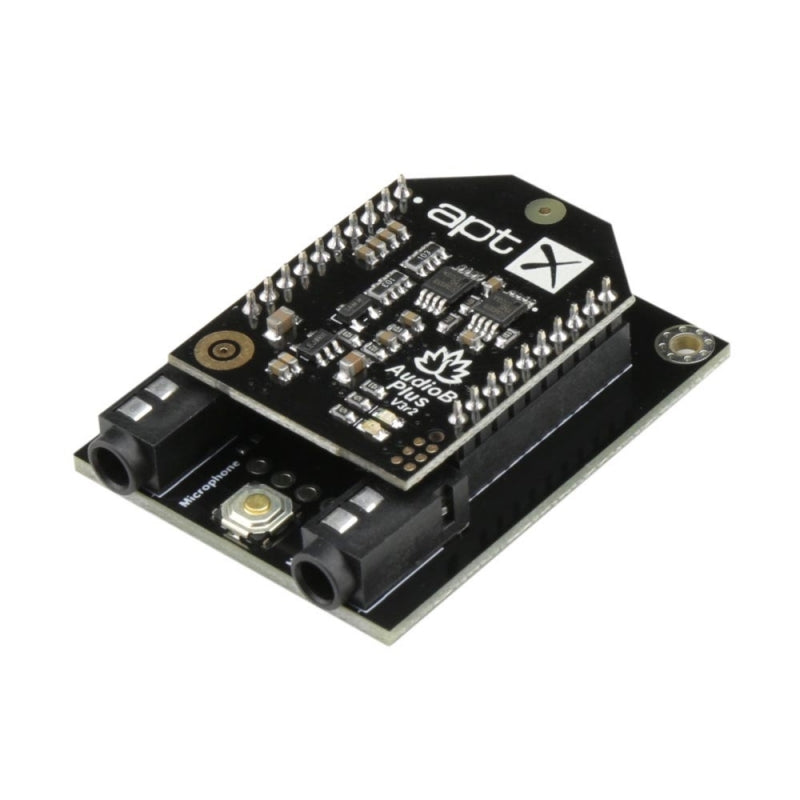

TSA6016 - Bluetooth Audio Receiver with Microphone Input (Apt-X)

This is a Bluetooth audio receiver with phone call function. There are two 3.5mm audio jacks and a phone call answer button on the board. It can work as a normal bluetooth music receiver. When this Bluetooth Music Receiver connects to the Line-In or Aux input on your home audio system. You can then stream audio from your Bluetooth enabled cell phone or mp3 player to your home audio system. Enjoy the convenience of having your music source in the palm of your hand and listening to it through your home stereo. It comes with a new AudioB plus Bluetooth module that supports Apt-X.

It can also work as a hand-free phone call system. It can connect with your car audio system or a headphone. It will be a very useful little thing on your car.

Features:

• Size: 42*32*11mm
• 19mA@5V
• Bluetooth 5.0
• Apt-X supported
• Stereo receive
• Microphone input
• Effective transmission distance: 10-25m
• Micro USB female port for powering the receiver from any USB power source(5VDC)
• Compatible with all Bluetooth devices that support media audio, including iPhone

Documents:

• How to change the BT name
• How to enable BT password
