Tinysine

TSA1000 Digital Audio Volume Controller

TSA1000 Digital Audio Volume Controller

Regular price $12.95 USD
Regular price Sale price $12.95 USD
Sale Sold out
Shipping calculated at checkout.

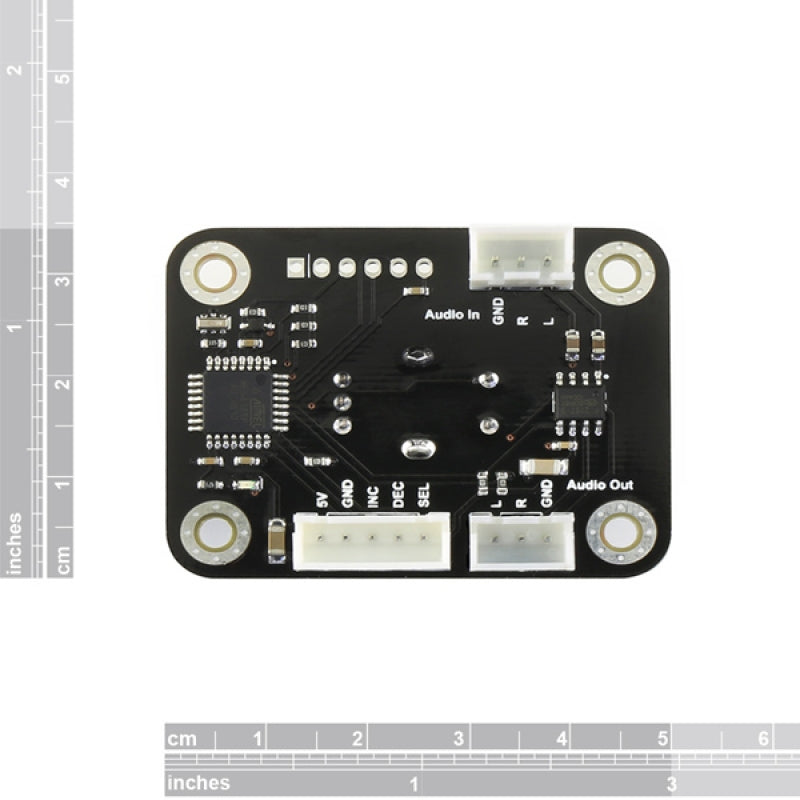

TSA1000 is a Bluetooth/Single-ended audio volume controller board. It can work with our TSA7499 Bluetooth audio amplifier board and control the audio volume by rotating a real knob. Either the Bluetooth audio source or cable input(Single-ended) audio source can be adjusted by this small knob.

It has a single-ended audio source in port, a single-ended audio source output port and a bluetooth audio volume control port. The audio out signal will increase/decrease when user rotates the knob, Bluetooth audio volume control port will also output an increase/decrease control signal.





Pins define:

Port name Pin name Direction Description
Audio In GND -
R Analog In Audio in
L Analog In Audio in
Audio Out GND -
R Analog Out Audio out, connect to amplifier board
L Analog Out Audio out, connect to amplifier board
Bluetooth control 5V -
GND -
INC Digital Out Bluetooth audio volume +
DEC Digital Out Bluetooth audio volume -
SEL Digital In

Bluetooth/Single-ended select

1-Bluetooth,

0-Single-ended select





TSA7499 with TSA1000 external volume control board



Features:

  • Size: 5cm x 3.8cm
  • Bluetooth audio volume control
  • Singal-ended audio volume control
  • External audio volume knob
  • Working voltage: DC5V



Applications:

  • Personal computer
  • Background music system
  • Musical instrument amplifiers
  • Home DIY
  • Car audio
