2 x 8 Watt Class D Bluetooth Audio Amplifier Board - TSA3111B(Apt-X)

2 x 8 Watt Class D Bluetooth Audio Amplifier Board - TSA3111B(Apt-X)

Regular price $24.95 USD
Regular price Sale price $24.95 USD
Sale Sold out
Shipping calculated at checkout.
Antenna Type

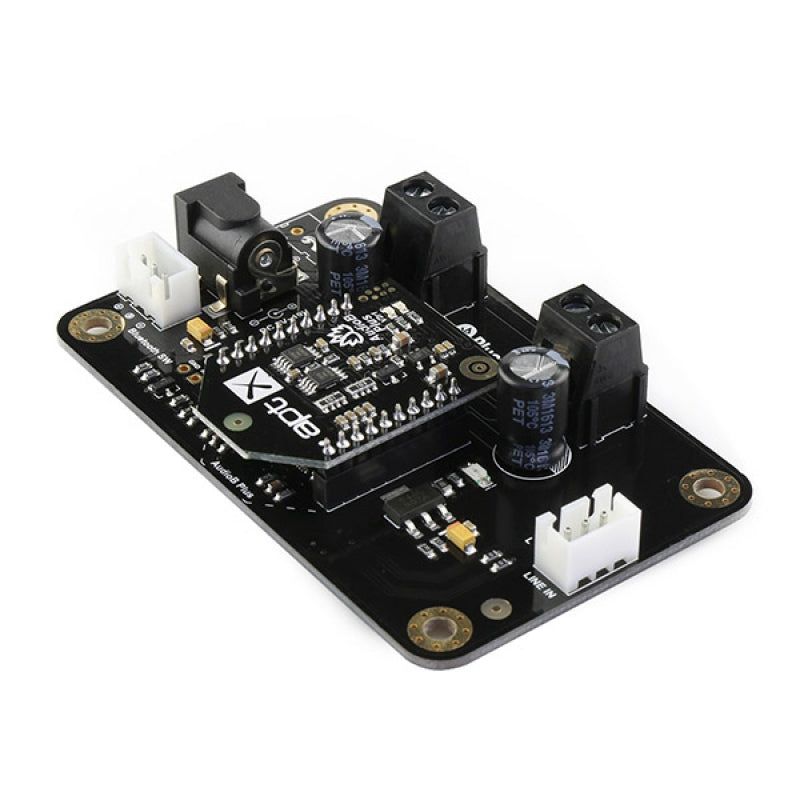

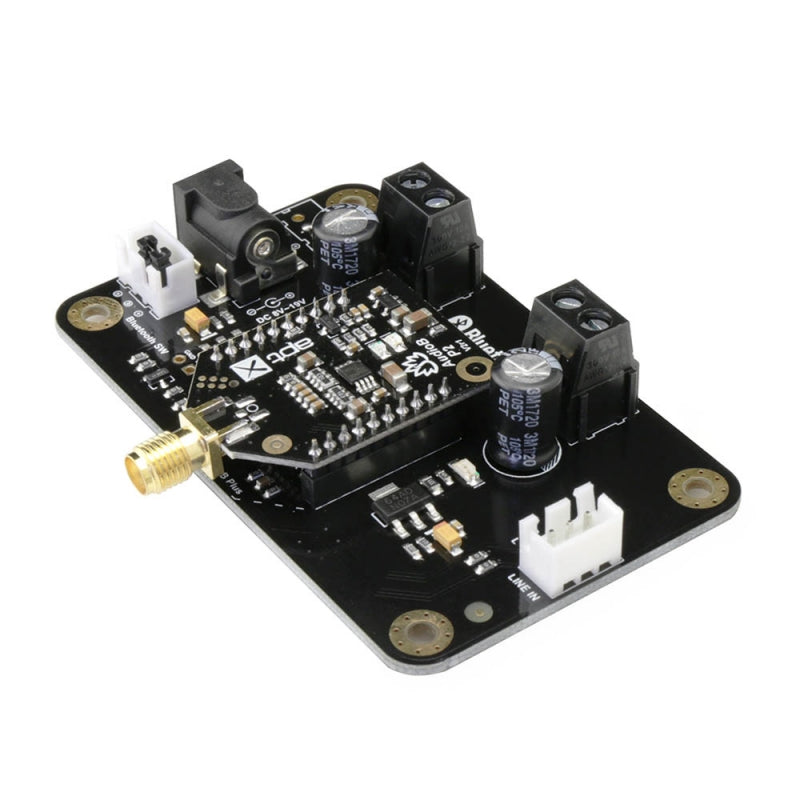

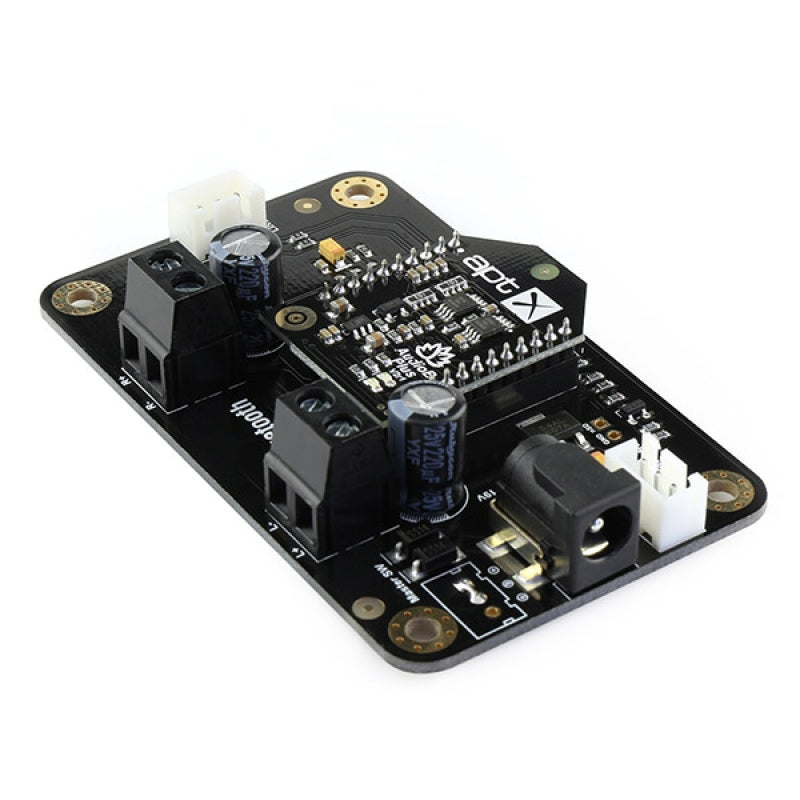

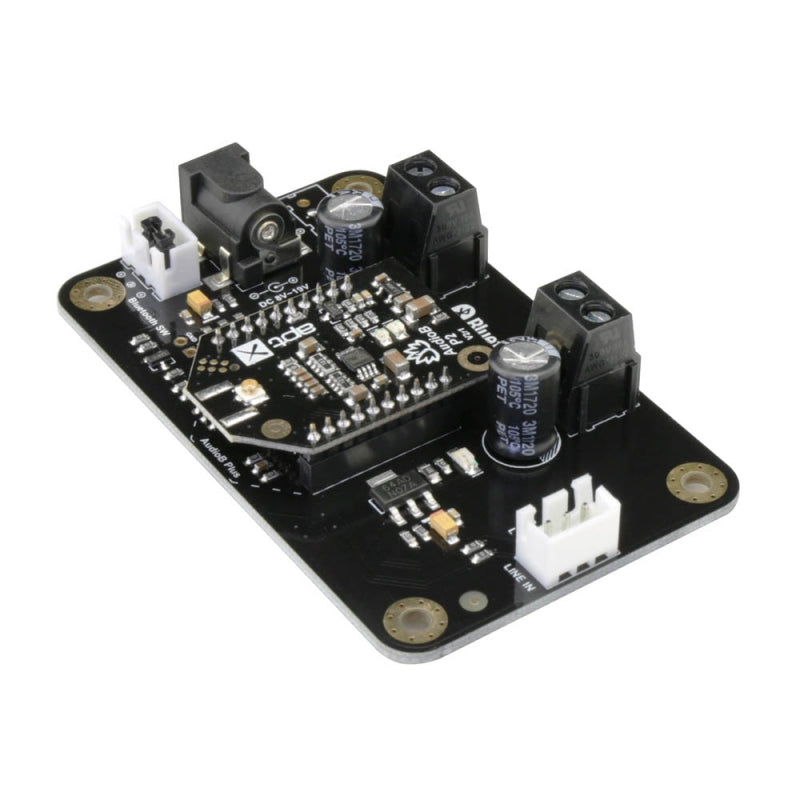

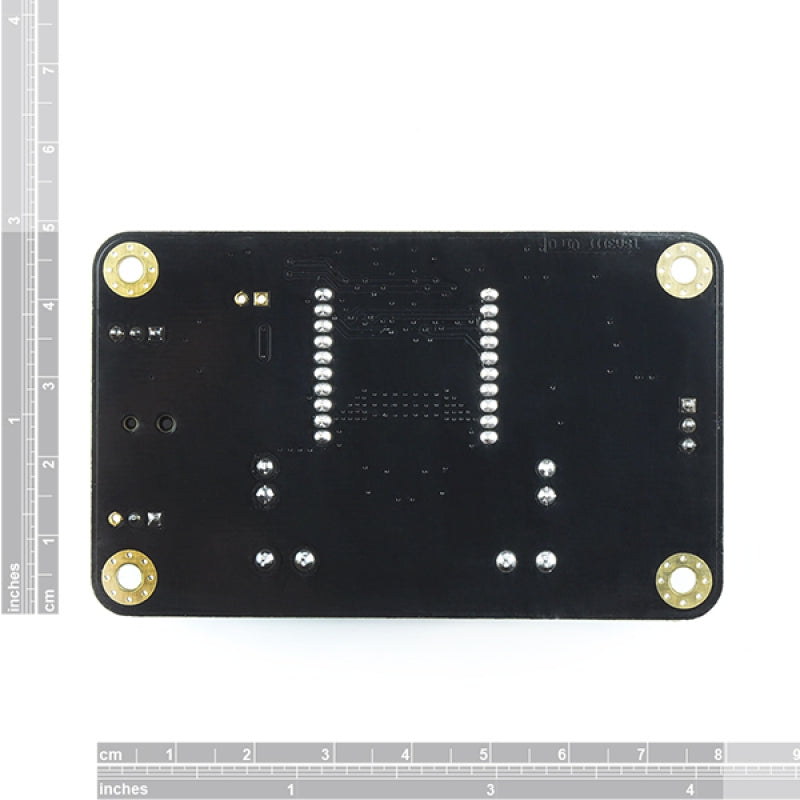

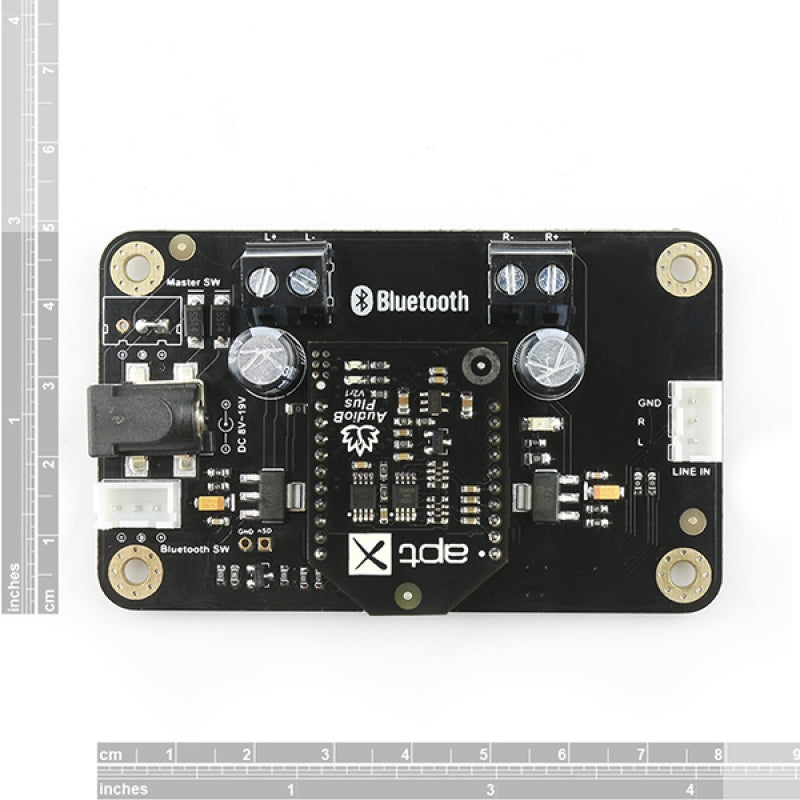

TSA3111 are designed for factory or DIY user. Bluetooth/LINE IN select switch and audio input port are designed as JST connectors. So, user can install this amplifier board in a box and connect an external switch and RCA/Mono plug to make their own audio amplifier.

TSA3111 comes with a new AudioB plus Bluetooth module that supports Apt-X. It has perfect class-D architecture(Based on TPA3110D2) and every channel has 8W power output. This board can be powered by any DC8V-16V power supply, it can be used to drive any 4Ω or 8Ω passive speakers.

It's perfect for your Hi-Fi application, the audio source can be cable input or Bluetooth. You may wish to pair with a mobile phone or a computer (etc). Power the amplifier board. Use your phone or PC (etc) to search for a new Bluetooth device. The module will appear as "BT Speaker". You don't need a PIN, pair it and then you can play music.









Specification:

TA = 20℃, fIN = 1 kHz sine wave, RL = 4Ω. (Unless otherwise stated)

Parameter

Condition

Min

Typ

Max

Supply Voltage (V)

-

8

12

16

Quiescent Current (mA)

SD = 2V, No load, Vcc = 12V

-

20

35

Input Sensitivity (V)

Gain = 26dB

-

0.283

-

Input Impedance (Kohm)

-

-

30

-

Gain (dB)

-



26



Output Power (W rms)

THD+N = 10%, Vcc = 12V

-

8

-

Efficiency (%)

Vcc = 12V, RL = 8Ω, PO = 5W

-

86

-

Minimum Load (ohm)

-

3.2

4

-

Frequency Response (Hz)

±3dB

20

-

22k

Operating Temperature (℃)

-

-40

20

65



Features:

  • Size: 4.8cm x 8cm
  • aptX, aptX Low Latency, SBC and AAC
  • External mute control port
  • Working voltage: DC8V-16V
  • Over/under voltage protection
  • Over current protection
  • Over temperature protection
  • Bluetooth 5.0

Applications:

  • Personal computer
  • Desktop amplifier
  • Microphone preamplifier
  • Home DIY
  • Vending machine,Lifts
  • Interactive kiosks
