2 x 8 Watt Class D Bluetooth Audio Amplifier Board - TSA3110A

2 x 8 Watt Class D Bluetooth Audio Amplifier Board - TSA3110A

Regular price $19.95 USD
Regular price Sale price $19.95 USD
Sale Sold out
Shipping calculated at checkout.
Antenna Type

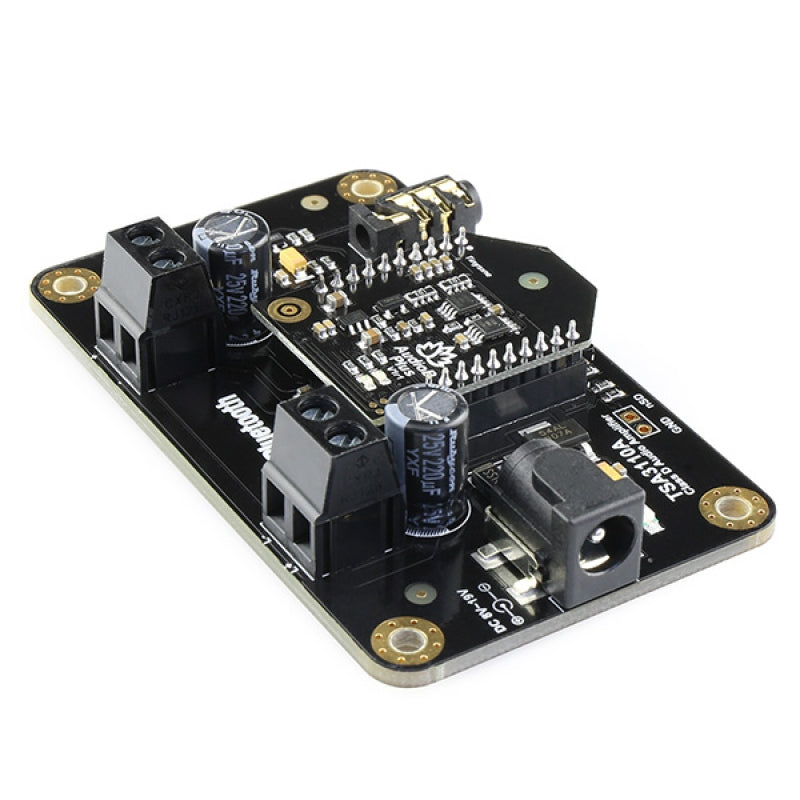

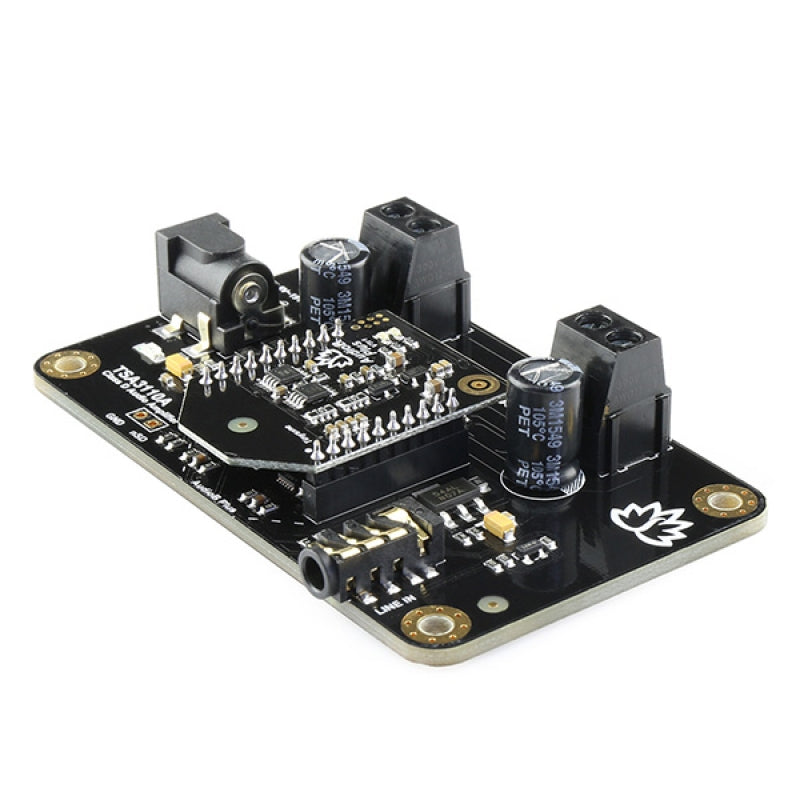

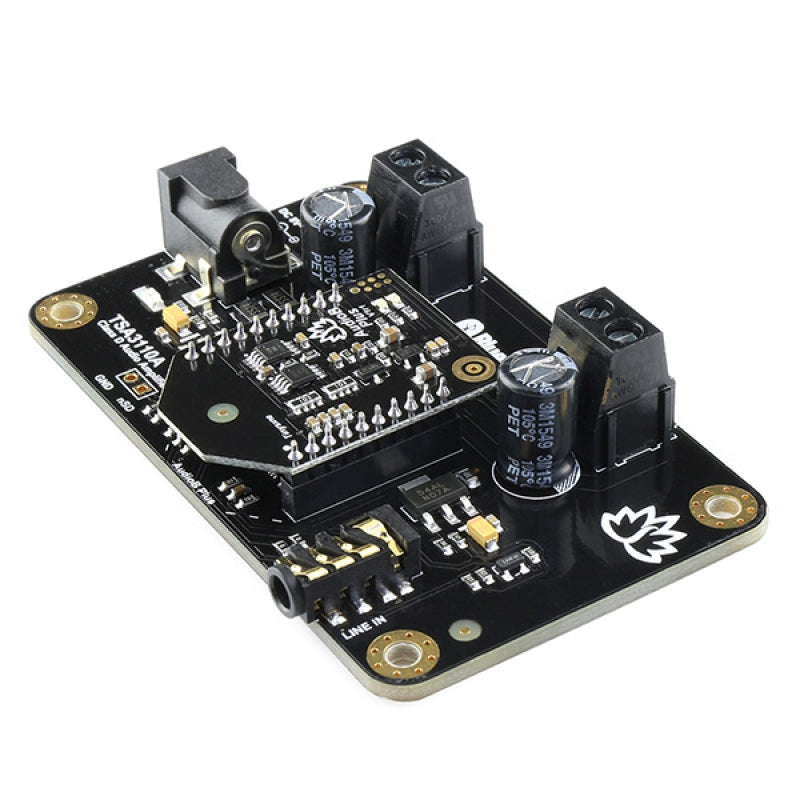

This is a 2x8W audio amplifier board with AudioB plus Bluetooth module. It has perfect class-D architecture(Based on TPA3110D2) and every channel has 8W power output. This board can be powered by any DC8V-16V power supply. It can be used to drive any 4Ω or 8Ω passive speakers.

It's perfect for your Hi-Fi application. The audio source can be cable input(3.5mm stereo) or Bluetooth. Let your smartphone paired with this board, play a music. So easy!



Note:When you insert the cable plug, Bluetooth connection will be automatically disconnected.



Specification:

TA = 20℃, fIN = 1 kHz sine wave, RL = 4Ω. (Unless otherwise stated)

Parameter

Condition

Min

Typ

Max

Supply Voltage (V)

-

8

12

16

Quiescent Current (mA)

SD = 2V, No load, Vcc = 12V

-

20

35

Input Sensitivity (V)

Gain = 26dB

-

0.283

-

Input Impedance (Kohm)

-

-

30

-

Gain (dB)

-



26



Output Power (W rms)

THD+N = 10%, Vcc = 12V

-

8

-

Efficiency (%)

Vcc = 12V, RL = 8Ω, PO = 5W

-

86

-

Minimum Load (ohm)

-

3.2

4

-

Frequency Response (Hz)

±3dB

20

-

22k

Operating Temperature (℃)

-

-40

20

65



Features:

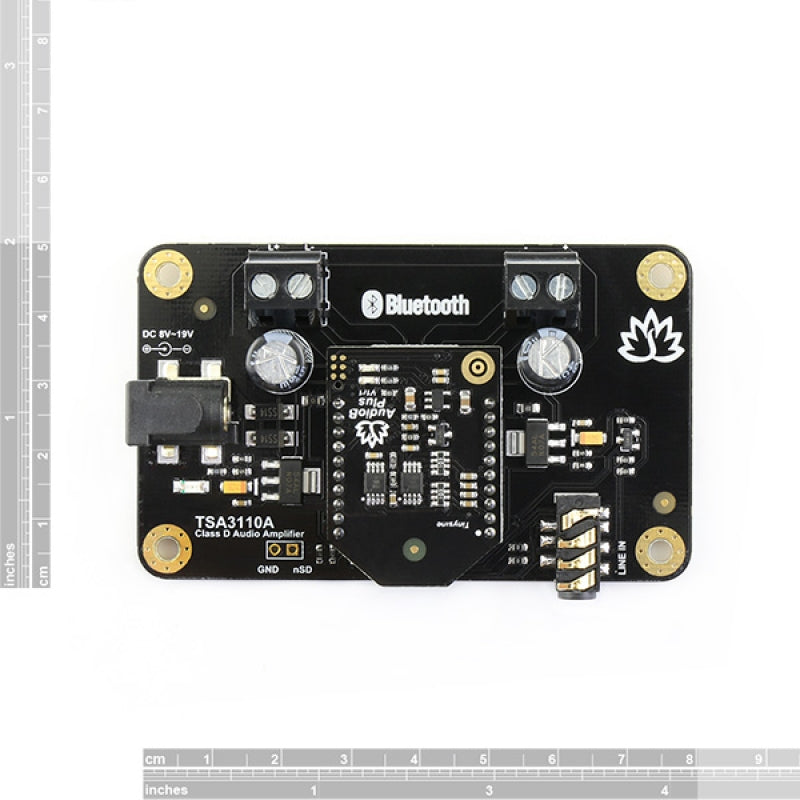

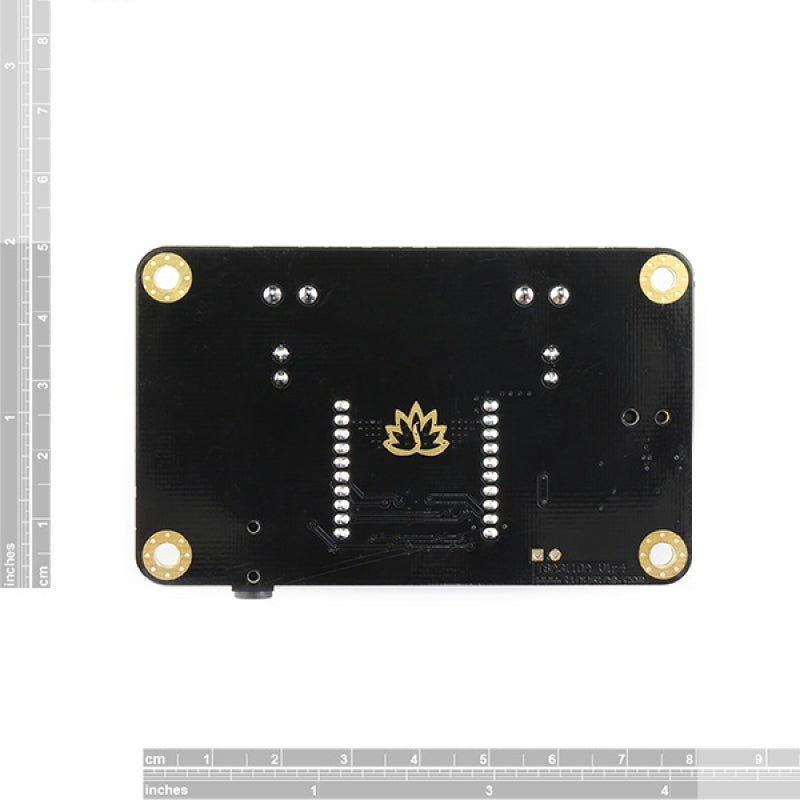

  • Size: 4.8cm x 8cm
  • External mute control port
  • Working voltage: DC8V-16V
  • Over/under voltage protection
  • Over current protection
  • Over temperature protection
  • Bluetooth 4.0

Applications:

  • Personal computer
  • Desktop amplifier
  • Microphone preamplifier
  • Home DIY
  • Vending machine,Lifts
  • Interactive kiosks
