2 x 20W Bluetooth 5.0 Multipoint Audio Amplifier Board - TSA1740

2 x 20W Bluetooth 5.0 Multipoint Audio Amplifier Board - TSA1740

Regular price $34.95 USD
Regular price Sale price $34.95 USD
Sale Sold out
Shipping calculated at checkout.



TSA1740 is a 2x20W Bluetooth 5.0 audio amplifier board. It has a digital amplifier chip YDA174 on the board. It is a 20W×2ch high performance digital audio power amplifier IC with two DSPs. This board can be powered by any DC10V-18V power supply. It can be used to drive any 4Ω or 8Ω passive speakers. It's perfect for your Hi-Fi application. You may wish to pair with a mobile phone or a computer (etc). Power the amplifier board. Use your phone or PC (etc) to search for a new Bluetooth device. The module will appear as "TSA1740". You don't need a PIN, pair it and then you can play music.

The highlight point is you can connect multi TSA1740 to let them work together. It's a Bluetooth network. When you set the board to "party mode", users can stream audio to many amplifier boards at the same time wirelessly.

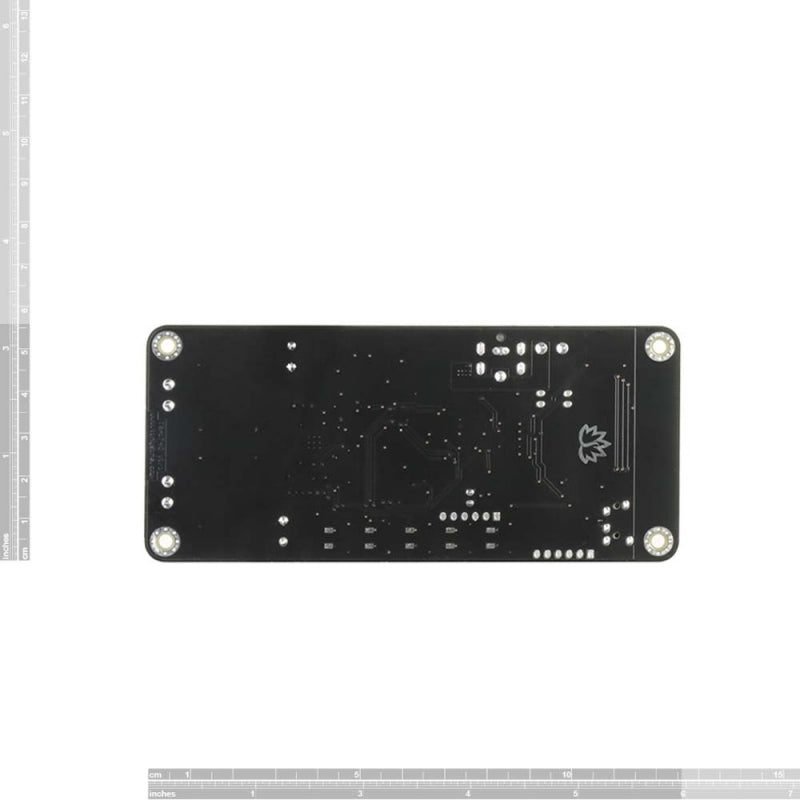

Note: There are soldering pads on the backside of the board for external buttons. You may need use a shielded cable to connect these buttons to prevent interference.



One TSA1740 works with a smartphone

How to use:

  1. Power the amplifier board.
  2. If your smartphone never paired with it before, you need the press the ON/OFF button first, and then to use your smartphone to search for a new Bluetooth device. The board will appear as "TSA1740".
  3. Pair and connect it and then you can play music.
  4. When you use it next time , you don't need press the ON/OFF button after power on.





Multi TSA1740 in party mode work with a smartphone

How to enter into party mode:

  1. Select one board as Master board. Let your smartphone paired and connected with it. You can play a music. You can hear the music from master amplifier speakers.
  2. Power on the other slave boards
  3. Long press the master board party button.
  4. Long press the slave boards party button one by one to make them paired with master board. All speakers can play music.



Specification:

Specifications typical @ +25℃, Powered by 12V DC, unless otherwise noted. Specifications subject to change without notice.



Parameter

Condition

Min

Typ

Max

Supply Voltage (VDC)

-

10

- 18

Idle Power

SD Floating

-

1.3W

2.5W

Standby Power

SD Connected to GND

-

0.1W

0.3W

Maximum Current

40W @ 4Ohm

-

3.42A

-

Efficiency

PVDD=12V, RL=8Ω

- 86% -

Minimum Load Impedance



3.2Ω



Distortion

RL=8Ω, PO=4.5W, 1 kHz

- 0.05% -
Gain     25dB

Residual Noise

RL=8Ω, A-Weighted

- 50 μV -

Input Impedance

- - 22KΩ -

Output Power

PVDD=14V, RL=4Ω, THD+N=10%

- 20W -

PVDD=15V, RL =8Ω, THD+N=10%

- 15W -

Bandwidth @ ±3dB

@4Ω

20Hz

- 20KHz

THD

@4Ω, 1W, 1KHz

-

0.0299%

-

@4Ω, 10W, 1KHz

-

0.073%

-



Features:

  • Dimensions: 5.6cm x 12.6cm x 2.8cm
  • Bluetooth 5.0
  • Supports A2DP 1.3, AVRCP 1.6, HFP 1.6, HSP1.2 and SPP 1.2
  • Aux in/LIne in auto detect
  • Working voltage: DC10V-18V
  • Pop noise reduction
  • Over/under voltage protection
  • Over current protection
  • Over temperature protection



Applications:

  • Personal computer
  • Background music system
  • Musical instrument amplifiers
  • Home DIY
