TSA7020 - Bluetooth 5.0 Digital Bluetooth Audio Receiver Board(I2S+DAC)

TSA7020 - Bluetooth 5.0 Digital Bluetooth Audio Receiver Board(I2S+DAC)

Precio habitual $29.95 USD
Precio habitual Precio de oferta $29.95 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

This is digtial Bluetooth music receiver connects to the Line-In or Aux input on your home audio system. You can then stream audio from your Bluetooth enabled cell phone or mp3 player to your home audio system. Enjoy the convenience of having your music source in the palm of your hand and listening to it through your home stereo.

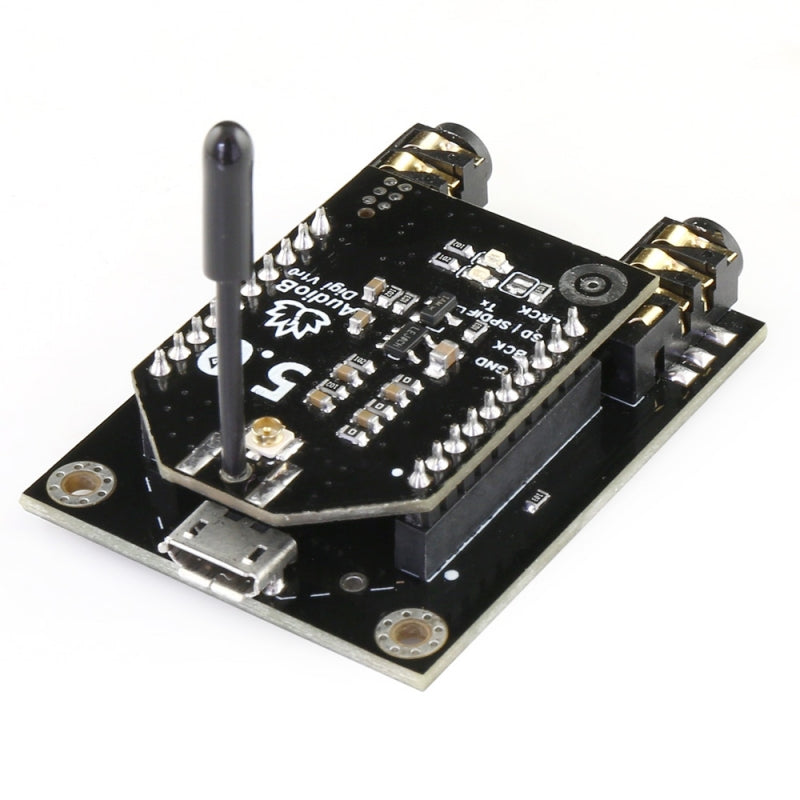

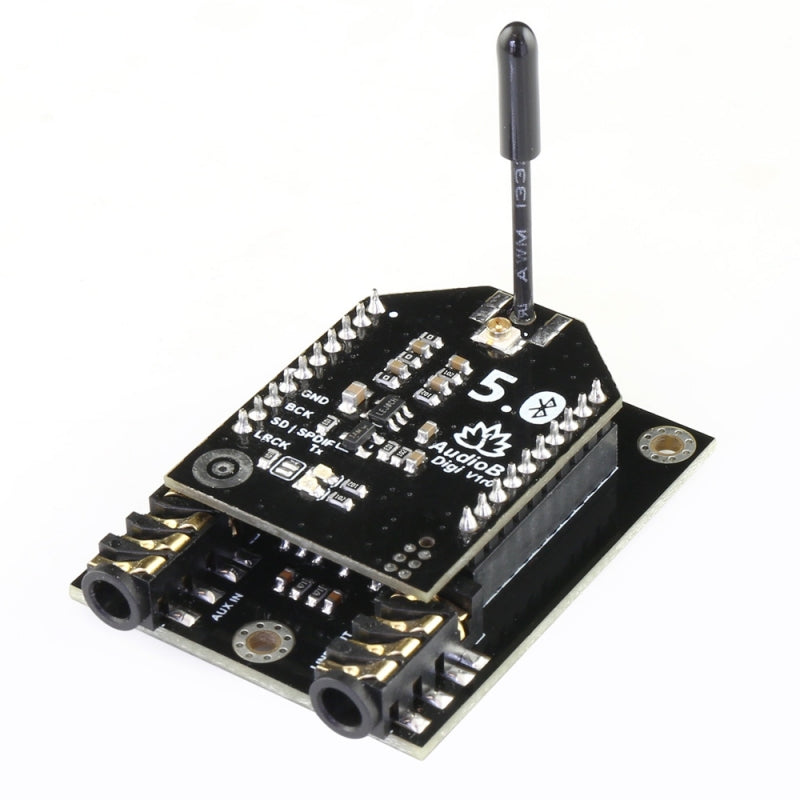

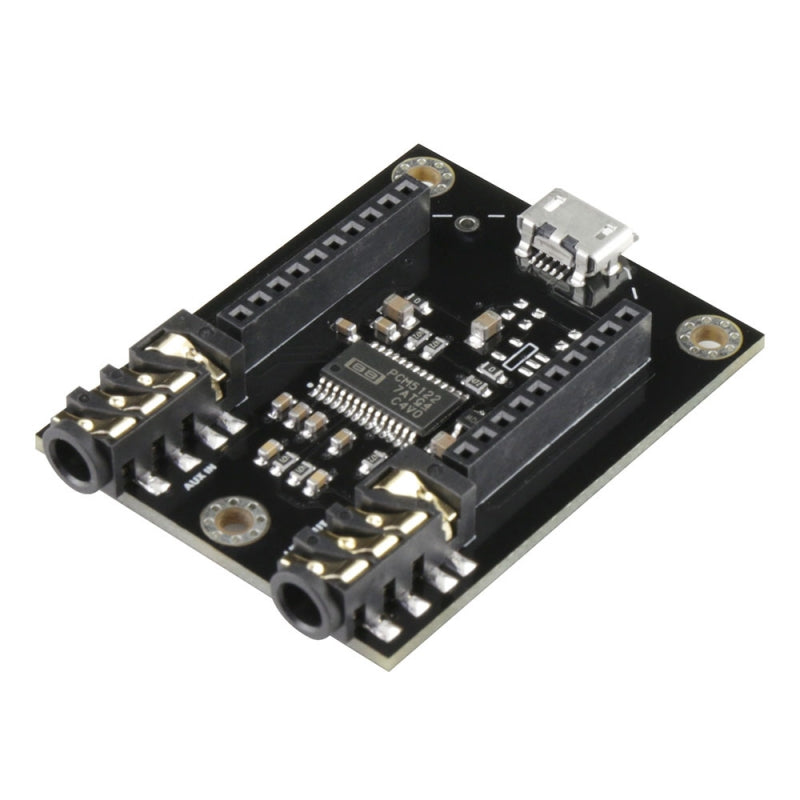

it comes with a I2S output Bluetooth 5.0 digital AudioB plus Bluetooth module. I2S digital output. Apt-X supported. Based on CSR8675. The base board is a DAC(PCM5122PWR) board which convert the I2S digital audio to analog output.


Note : TSA7020 can auto detect the Aux in/Line in Audio input. Bluetooth Audio source has higher priority. When Bluetooth audio paused or bluetooth disconnected. TSA7020 will output the Aux in/Line in audio.




  • Size: 42*32*11mm
  • Bluetooth 5.0
  • Apt-X supported
  • Stereo receive
  • 1.8Vrms audio out output.
  • Effective transmission distance: 10-15m
  • Mcro USB female port for powering the receiver from any USB power source(5VDC)
  • Compatible with all Bluetooth devices that support media audio, including iPhone
