TSA6016 - Bluetooth Audio Receiver with Microphone Input (Apt-X)
TSA6016 - Bluetooth Audio Receiver with Microphone Input (Apt-X)
No se pudo cargar la disponibilidad de retiro
This is a Bluetooth audio receiver with phone call function. There are two 3.5mm audio jacks and a phone call answer button on the board. It can work as a normal bluetooth music receiver. When this Bluetooth Music Receiver connects to the Line-In or Aux input on your home audio system. You can then stream audio from your Bluetooth enabled cell phone or mp3 player to your home audio system. Enjoy the convenience of having your music source in the palm of your hand and listening to it through your home stereo. It comes with a new AudioB plus Bluetooth module that supports Apt-X.
It can also work as a hand-free phone call system. It can connect with your car audio system or a headphone. It will be a very useful little thing on your car.
Features:
- Size: 42*32*11mm
- 19mA@5V
- Bluetooth 5.0
- Apt-X supported
- Stereo receive
- Microphone input
- Effective transmission distance: 10-25m
- Micro USB female port for powering the receiver from any USB power source(5VDC)
- Compatible with all Bluetooth devices that support media audio, including iPhone
Documents:
Share



Great board but don't make the mistake I made and buy a rode lavallier go mic this board has no external gain and that mic is too low output. Just get the high sensitivity mic they sell while your ordering the board.
Audio quality is amazing.
suggestions for improvement :- add the circuitry to the parent board to program the Bluetooth board via the usb (or even better via the Bluetooth its self) - expecting someone to spend circa £50 for a programming lead to rename it or set a Bluetooth pin is ridiculous for one off users.

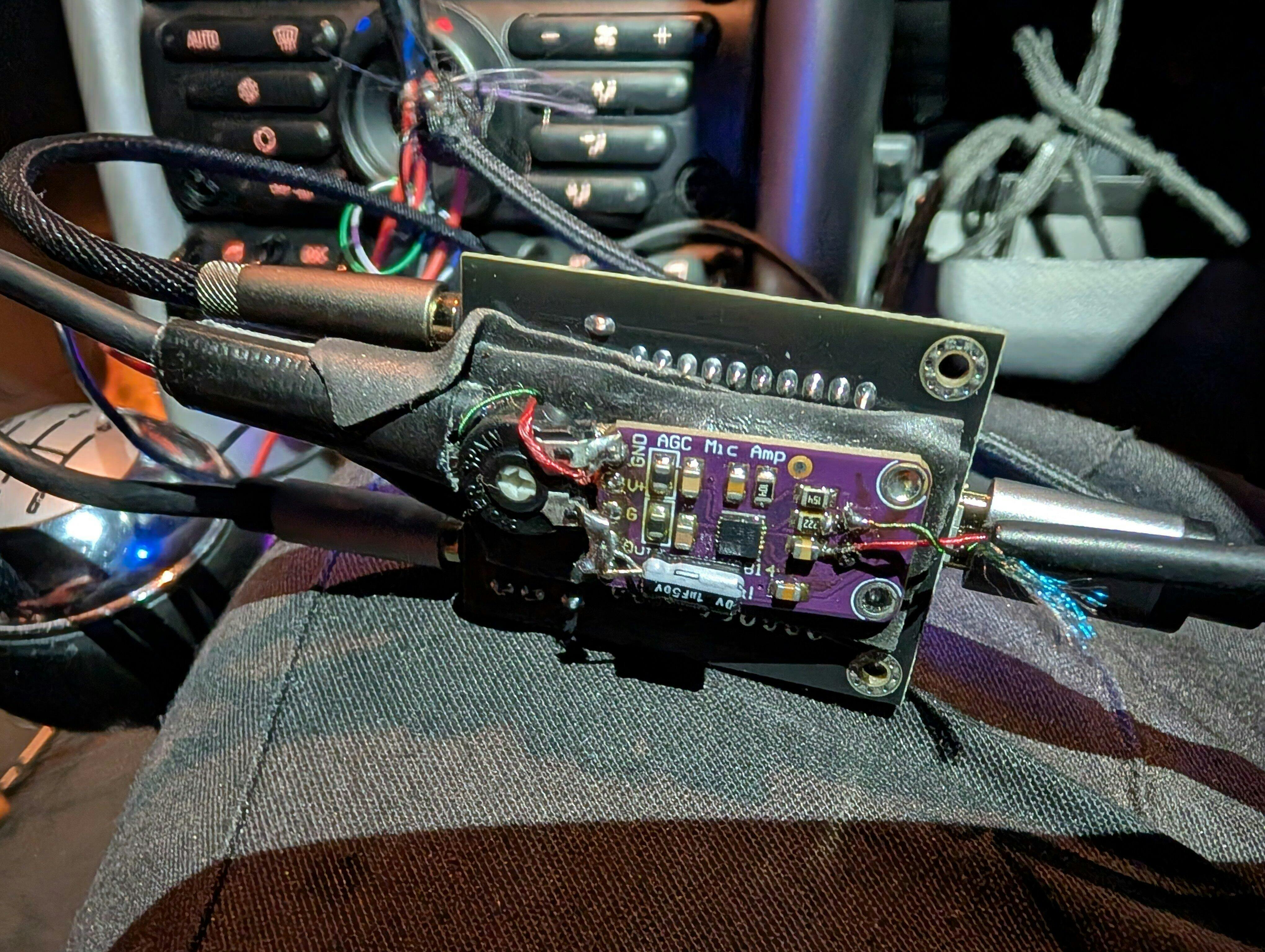

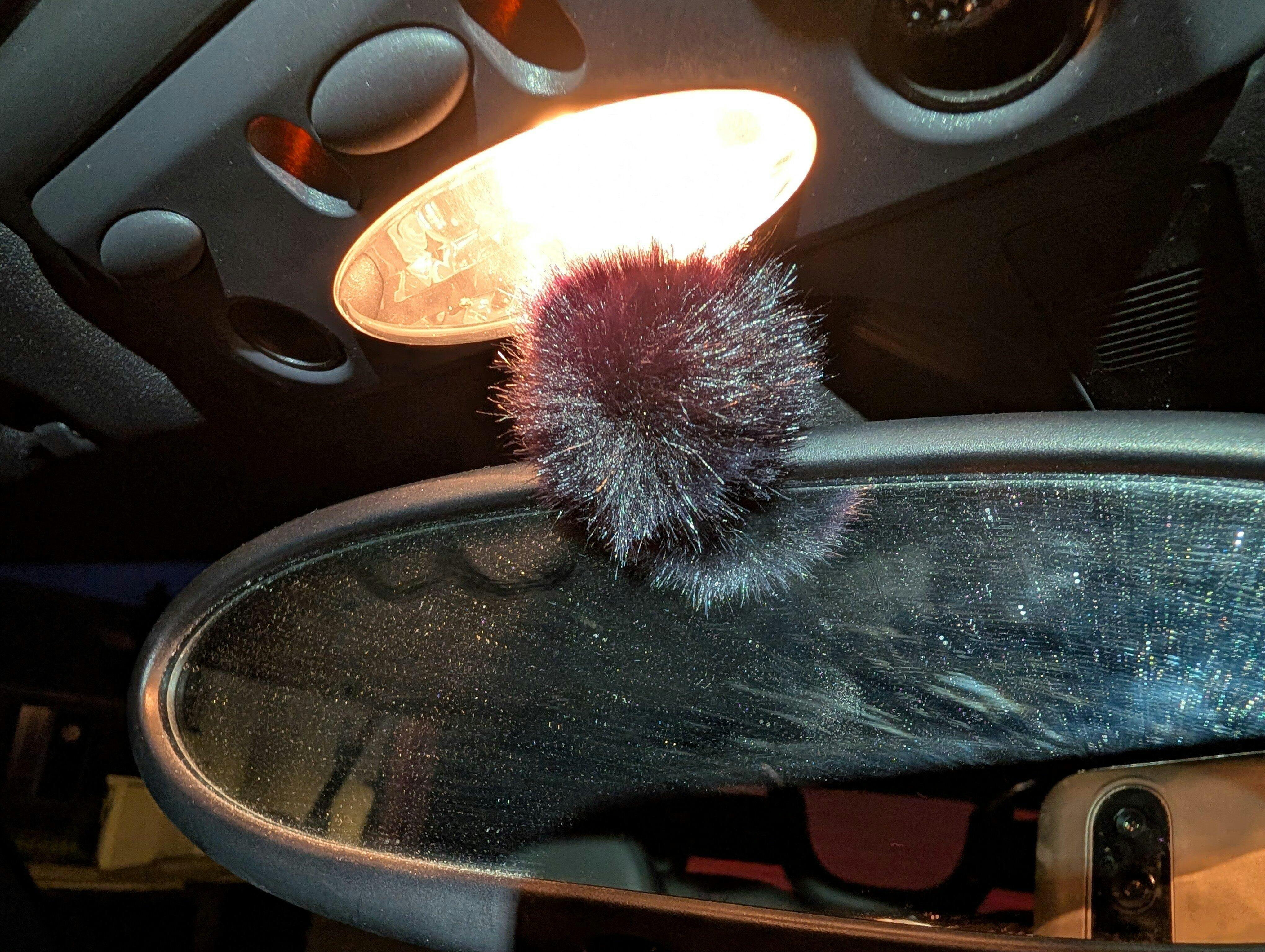

Add a pre amp and pot to allow it to work with different mics. I ended up doing surgery on a max9814 board to get it to work with my rode. It would be great if this was on the parant board already.
