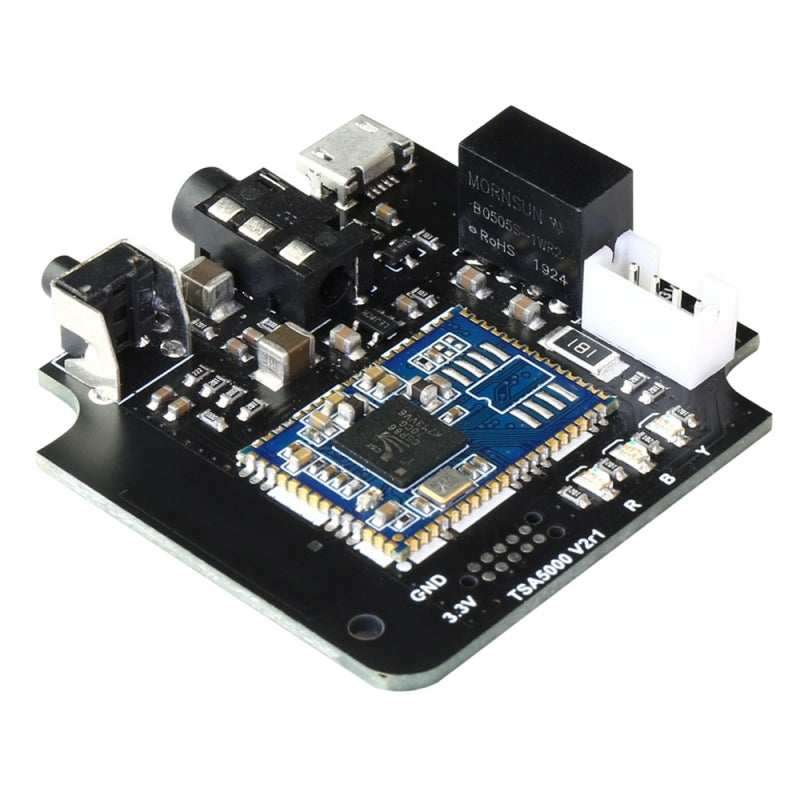

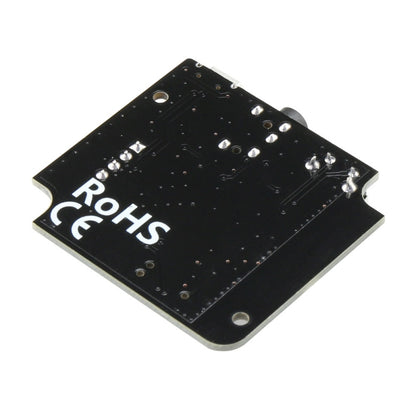

TSA5000 - Bluetooth 5.0 Audio Transmitter Board - Analog input

TSA5000 - Bluetooth 5.0 Audio Transmitter Board - Analog input

Precio habitual $16.95 USD
Precio habitual Precio de oferta $16.95 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

This is a compact size bluetooth 5.0 audio transmitter. Maybe your music player(TV, Computer, DVD, Radio ect..) without Bluetooth integrated. And you don't want use cable connect with our amplifier board. You can use this little thing to let your audio player connect with your Bluetooth amplifier board wirelessly.

No need install any drivers. Just plug the 3.5mm stereo jack with your audio player 3.5mm audio connector. Power it on. Blue LED(B) slow blink. Red LED(R) ON. There also have a connector on the board. You can connect external LEDs with this board.

How to pair?

  1. Keep your TSA5000 bluetooth transmitter and bluetooth receiver device within 5m.
  2. Turn on your bluetooth receiver device, keep it in pairing mode
  3. Turn on your TSA5000 bluetooth transmitter, press the main button about 6-7 seconds, when blue LED light fast blink, now transmitter is in pairing mode and search receiver device automatically, finish pairing and connecting.
  4. After connecting successfully. the blue LED will stay on.
  5. Connect the audio cable with your music player. Now you can enjoy your music wirelessly.
  6. Quick press the main button can MUTE the music. LED change to Yellow LED on.


Note: This bluetooth audio transmitter can works with our bluetooth audio amplifier boards perfectly.



  • Bluetooth v5.0 specification support
  • aptX, aptX Low Latency, SBC and AAC
  • Bluetooth 5+EDR
  • Bluetooth protocol: A2DP
  • Output power: ClassII
  • QTIL's proximity pairing and QTIL's proximity connection

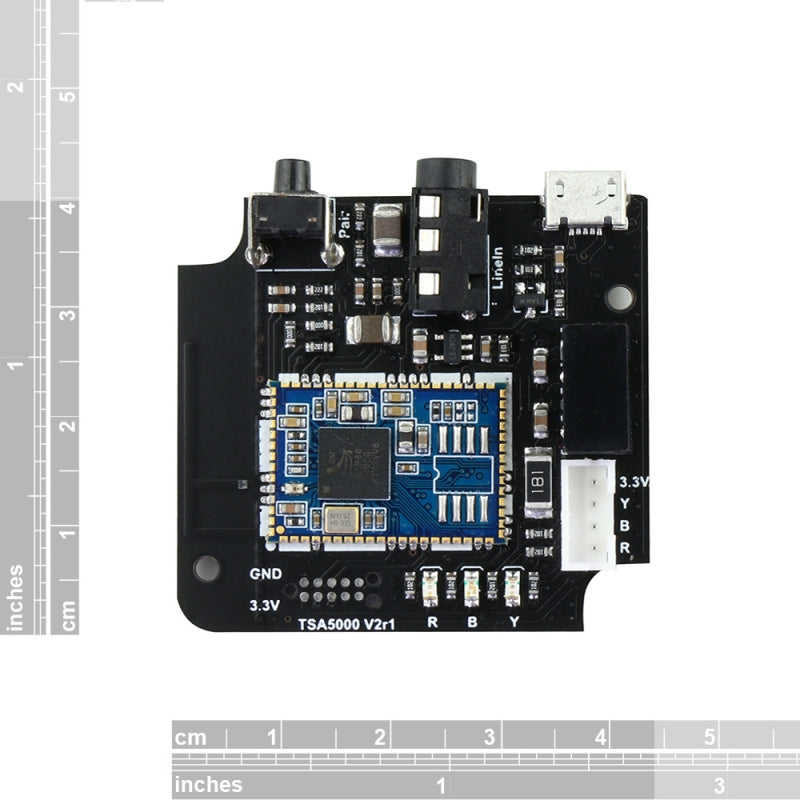

  • Dimensions: 44.5x44x12mm
  • Weight: 10g
