TOSLINKBee SPDIF to I2S Digital Audio Receiver Module

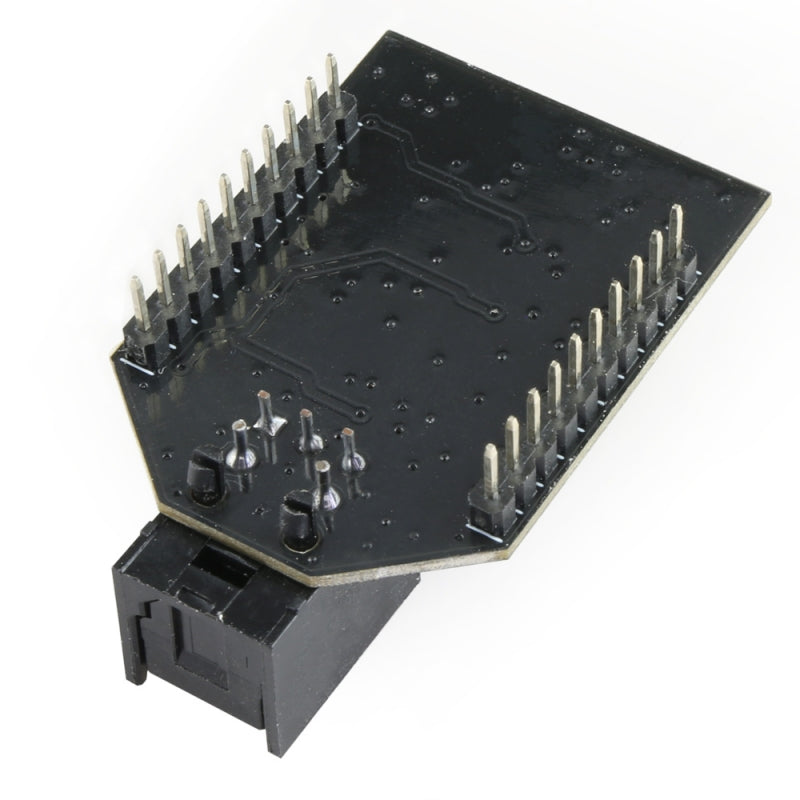

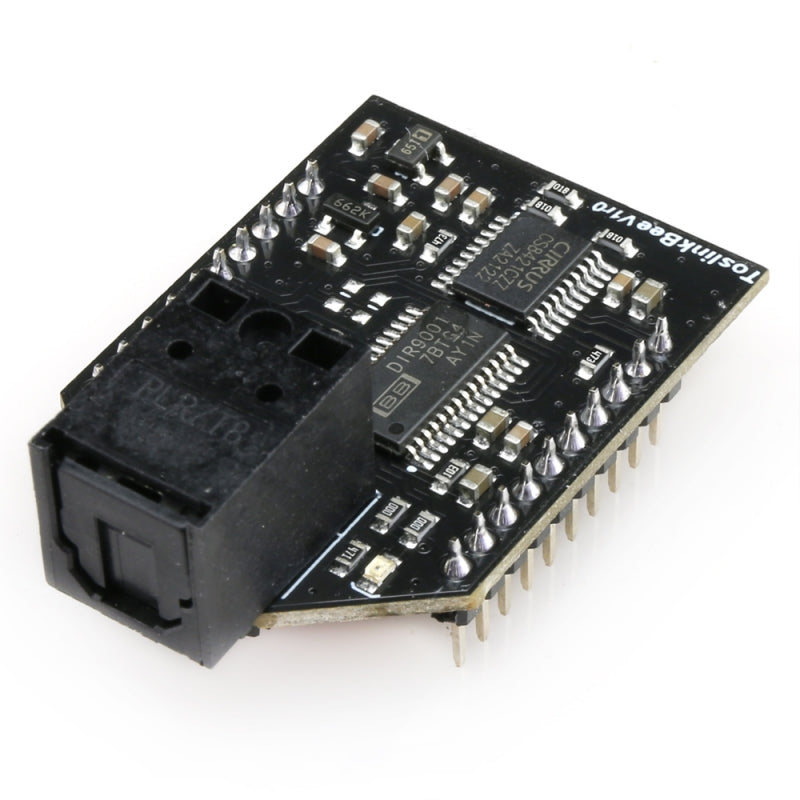

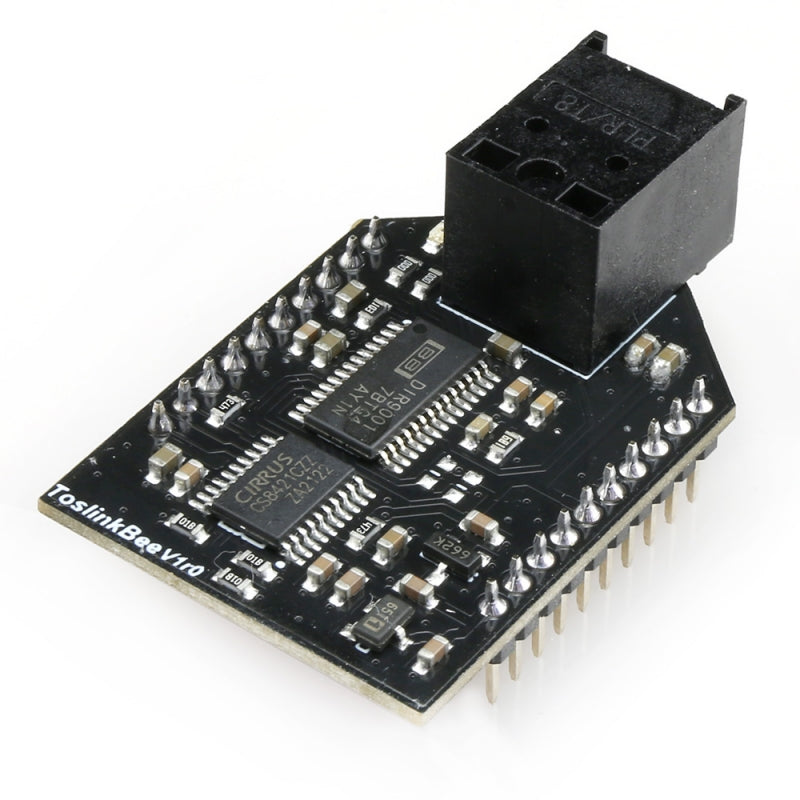

This TOSLINKBee module can convert SPDIF optical audio singal to I2S output. It has a TOSLINK receiver on the module and two 10 pin 2.0mm male pins. DIR9001PW convert the SPDIF signal to I2S and CS8421 convert the audio sample rate. TOSLINKBee can auto adapt to different sampling rates devices, from 16bit 44.1KHz to 26bit 96KHz. TOSLINKBee is a I2S slave device, It can works with all our DSP digital amplifiers. If you replace the AudioB Bluetooth module with this TOSLINKBee. The whole amplifier will becomes a new TOSLINK input amplifier board.

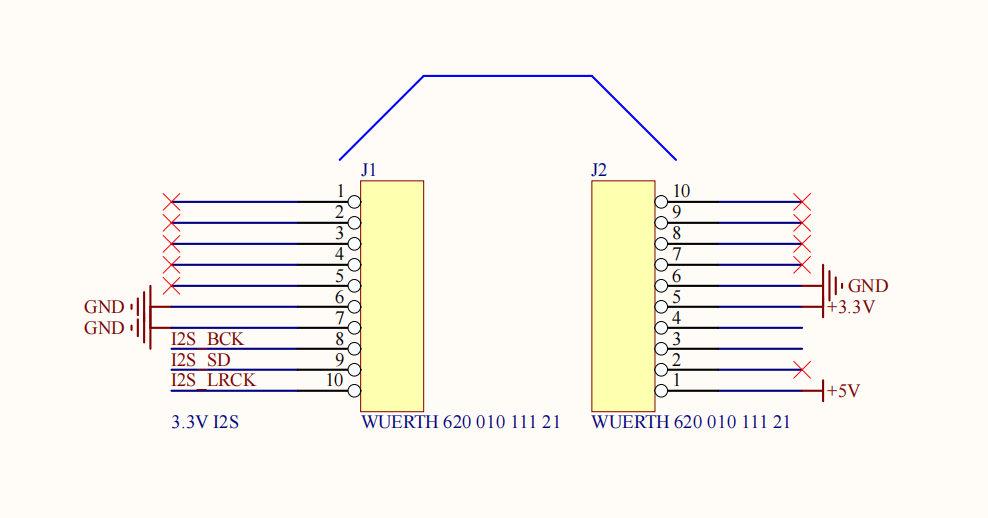

Pins define

5V is input. 3.3v is output

Features:

• Size: 40*35*20mm
• Supported SPDIF input sampling rate:
• 16bit, 44.1KHz, 48KHz, 88.2KHz, 96KHz
• 24bit, 44.1KHz, 48KHz, 88.2KHz, 96KHz
• I2S: Sampling Rate: 48KHz
• I2S: Bit per Sample: 16 bit
• Left Justified
• Justified Data 1 bit delay
• Input voltage: 5VDC
