Bluetooth 5.1 APTX Audio Module - TS3031

Bluetooth 5.1 APTX Audio Module - TS3031

Precio habitual $7.95 USD
Precio habitual Precio de oferta $7.95 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

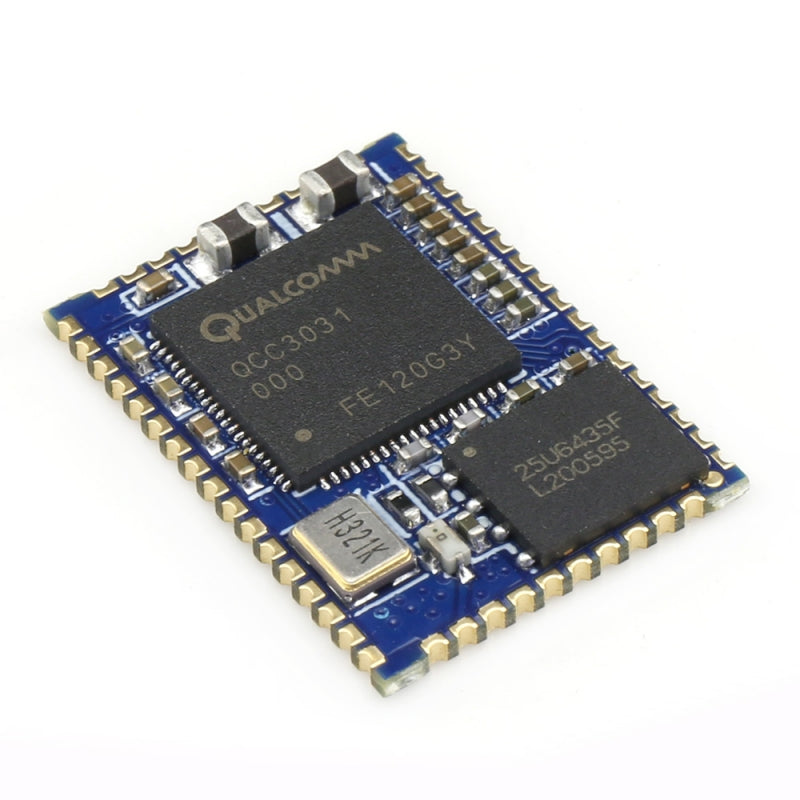

TS3031 is a cost effective, low power and compact solution Bluetooth 5.1 module with good performance. The Bluetooth module provides a complete 2.4GHz Bluetooth system based on the Qualcomm QCC3031 chipset which is a single chip radio and baseband IC for Bluetooth 2.4GHz systems. This module is fully qualified single-chip dual mode Bluetooth@v5.1 system. This module needs to connect external antenna.



Features:

                TS3031(QCC3031) features

  • Qualified to Bluetooth® v5.1 specification
  • 120 MHz Qualcomm® Kalimba™ audio DSPs
  • 32 MHz Developer Processor for applications
  • Firmware Processor for system
  • Flexible QSPI flash programmable platform
  • Advanced audio algorithms
  • High-performance 24-bit stereo audio interface
  • Digital and analog microphone interfaces
  • aptX, aptX HD, aptX Low Latency, SBC, and AAC audio codecs support
  • Serial interfaces: UART, Bit Serializer (I²C/SPI),USB 2.0
  • Integrated PMU: Dual SMPS for system/digital circuits, Integrated Li-ion battery charger


Application subsystem

  • Dual core application subsystem 32 MHz operation
  • 32-bit Firmware Processor:
    • Reserved for system use
    • Runs Bluetooth upper stack, profiles, house-keeping code
  • 32-bit Developer Processor:Runs developer applications
  • Both cores execute code from external flash memory using QSPI clocked at 32 MHz
  • On-chip caches per core allow for optimized performance and power consumption



Bluetooth subsystem

  • Qualified to Bluetooth v5.1 specification including 2 Mbps Bluetooth low energy (Production parts)
  • Single ended antenna connection with on-chip balun andTx/Rx switch
  • Bluetooth, Bluetooth low energy, and mixed topologies supported
  • Class 1 support



Applications:

  • Stereo Headsets
  • Wired Stereo headsets and headphones
  • Portable Bluetooth Stereo speakers



Documents:
