Tinysine

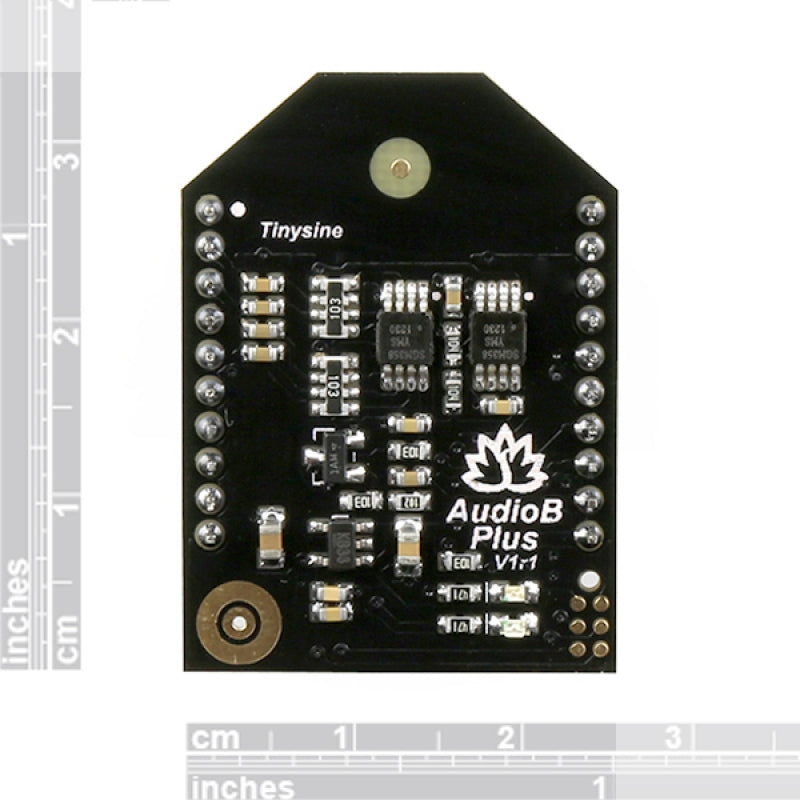

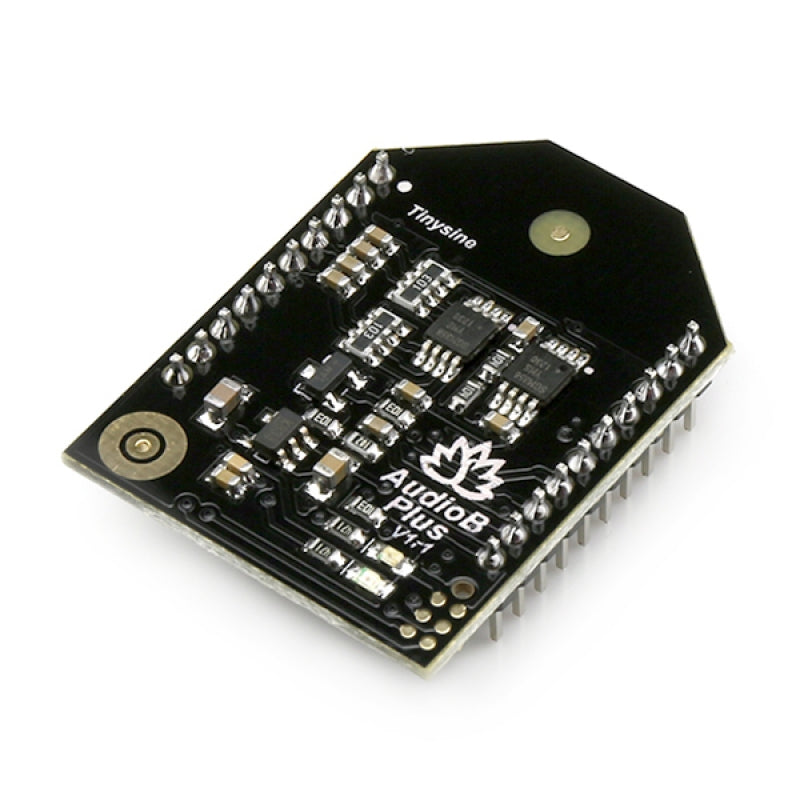

AudioB Plus Bluetooth Audio Receiver Module

AudioB Plus Bluetooth Audio Receiver Module

Precio habitual $7.95 USD
Precio habitual Precio de oferta $7.95 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

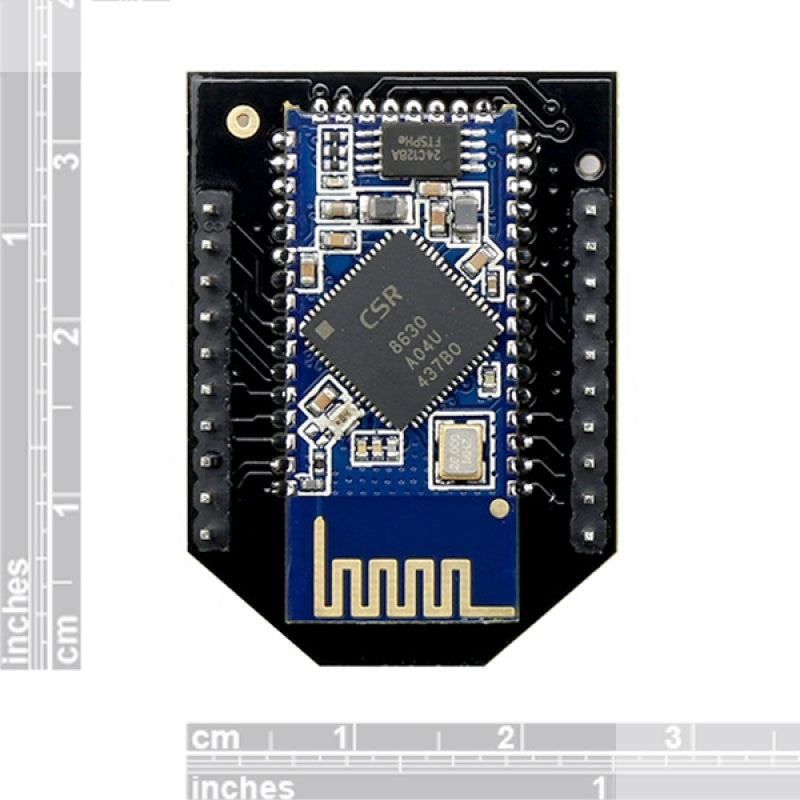

If you want to build a simple Bluetooth amplifier board, AudioB plus Bluetooth audio receiver is a good choice for your project. This is a bluetooth 4.0 stereo recevier. Based on CSR8635. We breakout pins to 2x10 2mm space male pins. You can integrate it to your project easily.



Single-ended signal output with Audio amplifer

Single-ended signal output with headphone/small speakers



Differential signal output



Microphone input

Note:

  1. Quick press S2 to switch to the previous song, long press to reduce the volume
  2. Quick press S3 to switch to the next song, long press to increase the volume
  3. Press S1 to play or pause
  4. if there is an audio output, MUTE pin will be high level, otherwise, it will be low level.



Features:

  • Bluetooth 4.0
  • HFP V1.6
  • HSP V1.2
  • A2DP V1.2
  • AVRCP v1.4
  • Support for smartphone application(APPs)



Documents:
