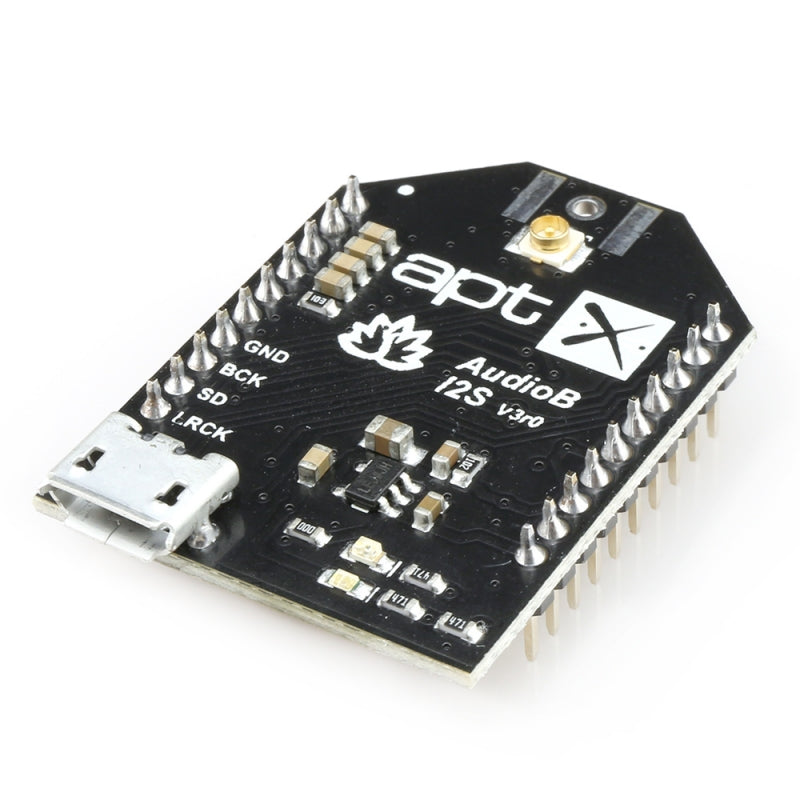

AudioB I2S V3 Bluetooth Digital Audio Receiver Module - I2S slave

AudioB I2S V3 Bluetooth Digital Audio Receiver Module - I2S slave

Precio habitual $11.95 USD
Precio habitual Precio de oferta $11.95 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

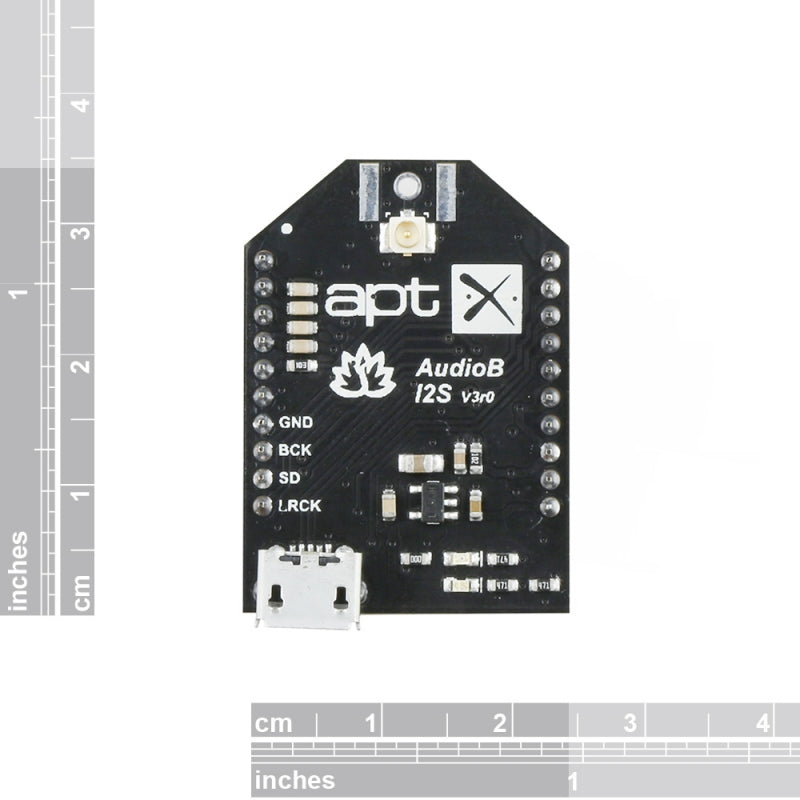

If you want build a digital Bluetooth amplifier board. AudioB I2S Bluetooth audio receiver module is a good choice for your project. This is a Bluetooth 5.1 stereo recevier module, I2S digital output and music resampling frequency is 48KHz. Apt-X supported. We breakout pins to 2x10 2mm space male pins. You can integrate it to your project easily. This module has a U.FL connector. You can connect an external 2.4G antenna with it by using a U.FL to SMA cable.

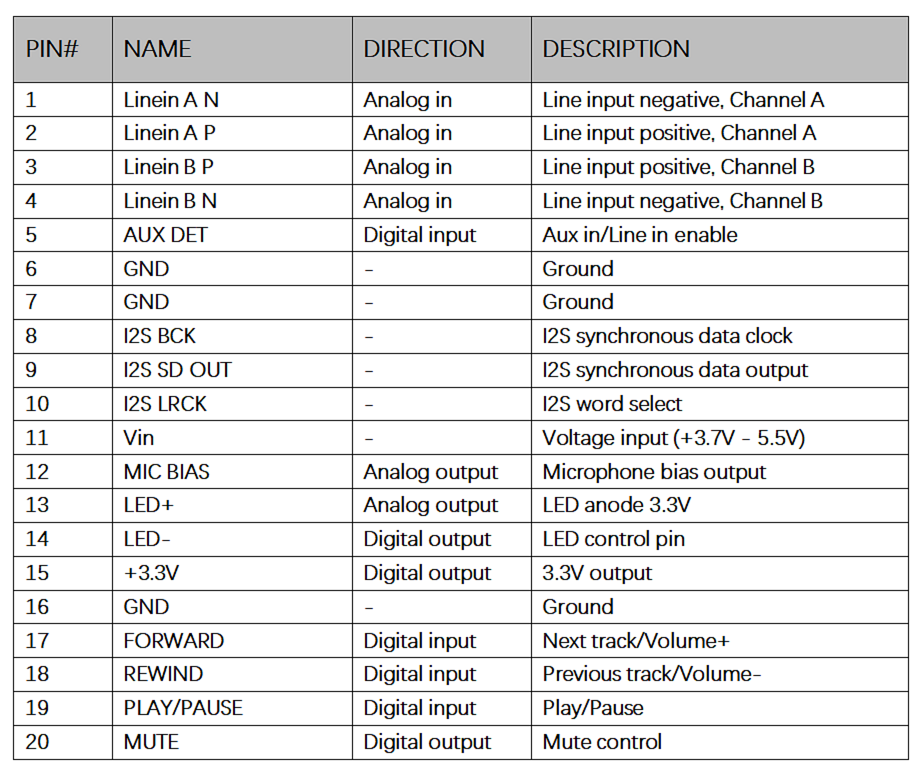

The module PIN7,8,9,10 are I2S output pins, I2S voltage 3.3V.

  • 7 - GND
  • 8 - BCK   I2S synchronous data clock, It's a 2.304MHz square wave signal.
  • 9 - SD     I2S synchronous data output.
  • 10 - LRCK   I2S word select, 48KHz. 1 - Left channel data, 0 - Right channel data.

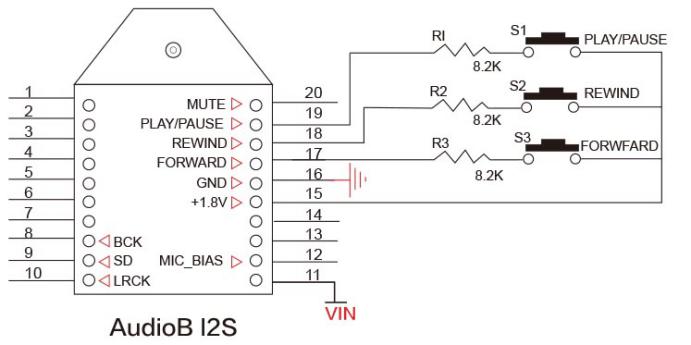

  1. Quick press S2 to switch to the previous song, long press to reduce the volume
  2. Quick press S3 to switch to the next song, long press to increase the volume
  3. Press S1 to play or pause
  4. if there have audio output, MUTE pin will be high level, otherwise, will be low level.



  • Bluetooth 5.1
  • I2S digital output
  • Sampling Rate: 48KHz
  • Bit per Sample: 16 bit
  • Left Justified
  • Justified Data 1 bit delay
  • Apt-X supported
  • Low power consumption: 5mA@5V
  • HFP V1.6
  • HSP V1.2
  • A2DP V1.2
  • AVRCP v1.4
  • Support for smartphone application(APPs)
