Our existing Bluetooth amplifier boards support TWS or Party mode wireless pairing to link 2 or more boards together. However, the pairing process needs to press 3 buttons many times. This is not user-friendly for many new users. We have recently upgraded the AudioB I2S module to version 4, which supports a one-button pairing function. Users can upgrade the entire amplifier board by simply replacing the original AudioB I2S module with the latest v4 version.
Hardware Preparation:

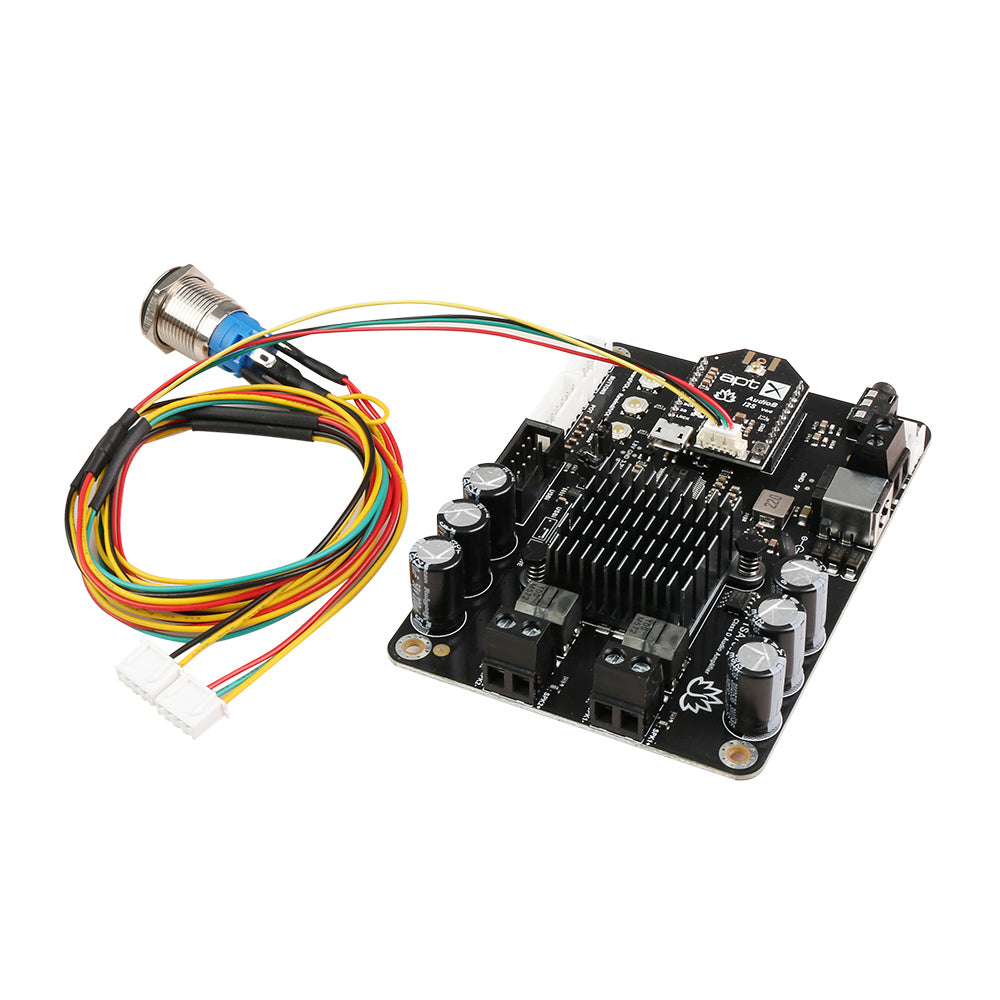

Replace the old AudioB I2S module with AudioB I2S V4
Connect the RGB Push Button to the AudioB I2S V4
How to Use
TWS Firmware
Single module:
- Power on the module and wait for 5 seconds. The module will enter pairing mode, and the red and green LEDs will flash alternately.
- Turn on your phone's Bluetooth, find a Bluetooth device named "AudioB I2S", and connect to it. Once connected, the red LED stays solid.
- You can play music now
TWS Connection
Master module:
- Pause the music, press and hold button S1 for about 2 seconds. You will hear two beep sounds, and the green LED will start flashing.
Slave module:
- Power on the other module (Slave) and wait for 5 seconds; the red and green LEDs will flash alternately.
- Press and hold button S1 for about 2 seconds; you will hear two beep sounds.
- After a moment, when the master and slave are successfully paired, the green LEDs on both the master and slave will stay solid.
- The master module and the slave module can play music now.
Party Mode Firmware
Single module:
- Double-click S1, module into pairing mode. (Voice: Pairing, blue LED flash 2 times per cycle.)
- Now, your smartphone will be able to find a new Bluetooth device whose name is "AudioB I2S", and connect to it. (Voice: Pairing successful, blue LED flash 1 time per cycle.)
- You can play music now.
Party Connection (multiple modules can be connected)
Transmitter module:
- Power up module, blue LED flashes 3 times per cycle.
- Double-click S1, module into pairing mode. (Voice: Pairing, blue LED flash 2 times per cycle.)
- Now, your smartphone will be able to find a new Bluetooth device named "AudioB I2S" and connect to it. (Voice: Pairing successful, blue LED flash 1 time per cycle.)
- You can play music now. If you only use one module, you don't need to do the following steps.
- Single click S1, the module will switch between transmitter mode and receiver mode. Stop clicking when you hear the voice: "transmitter mode." It means the module is set to transmitter mode, and the Red LED is ON.
Receiver module:
- Power up another module, blue LED flashes 3 times per cycle.
- Single click S1, the module will switch between transmitter mode and receiver mode. Stop clicking when you hear the voice: receiver mode. It means the module is set to receiver mode. Green LED is ON
- Press and hold the S1 button for about 1 second on the transmitter module and receiver module; the transmitter module will auto-search (30 seconds) the receiver module. Both the transmitter and receiver modules will be connected. (Voice: pairing successful)
- The receiver module will have music out now.
- If a new module wants to join as a receiver, repeat steps 1 to 3 on the new module.
- If a receiver wants to quit, click the S1 button on that module to set it into transmitter mode.
