TSA1010 Digital Audio Volume Controller
TSA1010 Digital Audio Volume Controller
Regular price
$12.95 USD
Regular price
Sale price
$12.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

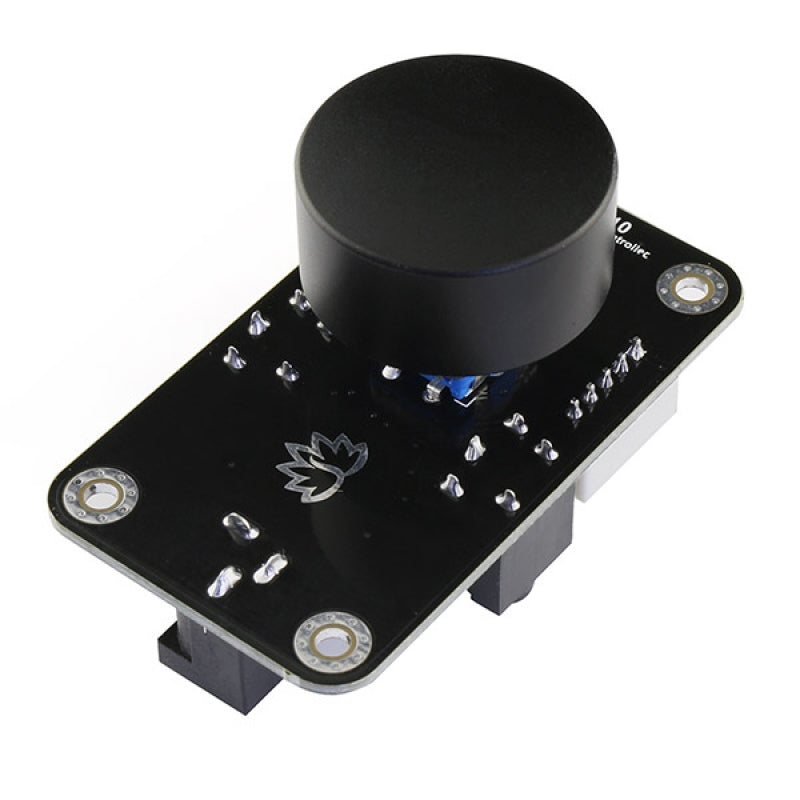

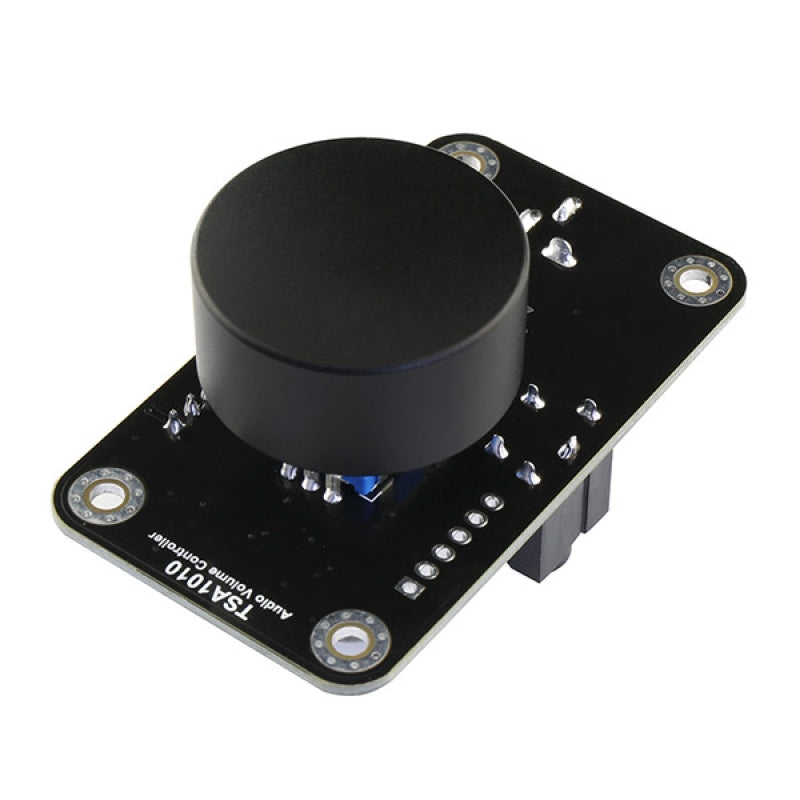

TSA1010 is a digital stereo Bluetooth/Single-ended audio volume controller board. It has two 3.5mm audio jack and a BVC port(Only for some Tinysine Bluetooth amplifier board). You can use it to control any normal amplifier board audio volume. The audio out signal will increase/decrease when user rotating the knob, Bluetooth audio volume control port will also output an increase/decrease control signal.
TSA1010 external volume control board

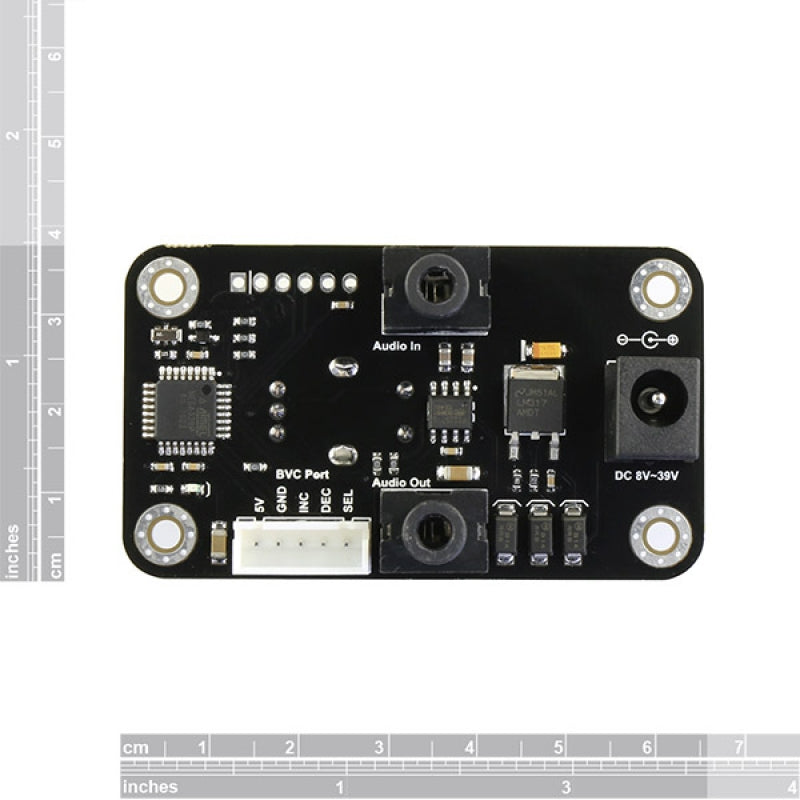

Pins define:
| Port name | Pin name | Direction | Description |
|
BVC Bluetooth volume control
|
5V | - | |
| GND | - | ||
| INC | Digital Out | Bluetooth audio volume + | |
| DEC | Digital Out | Bluetooth audio volume - | |
| SEL | Digital In |
Bluetooth/Single-ended select 1-Bluetooth, 0-Single-ended select |
Features:

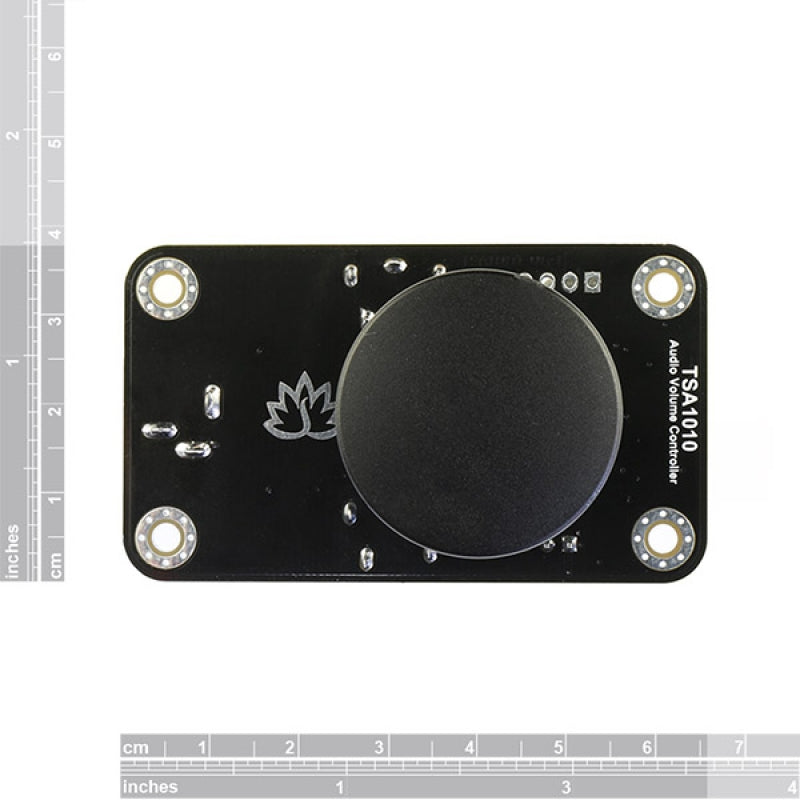

- Size: 6.6cm x 3.8cm
- Bluetooth audio volume control
- Singal-ended audio volume control
- External audio volume knob
- Working voltage: DC8V-39V
