Bluetooth 5.0 APTX Audio Module - TS8675

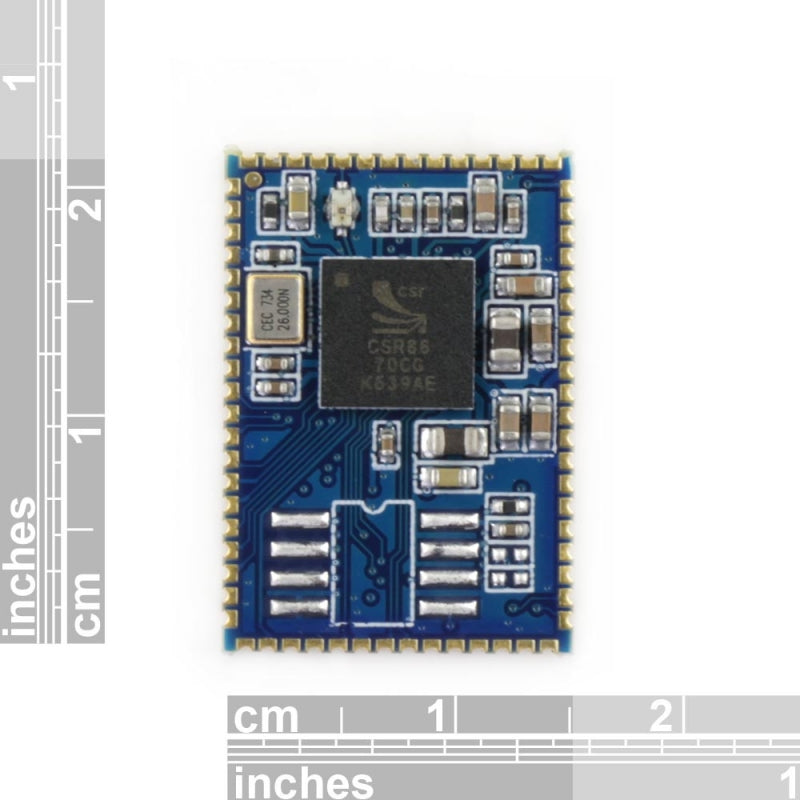

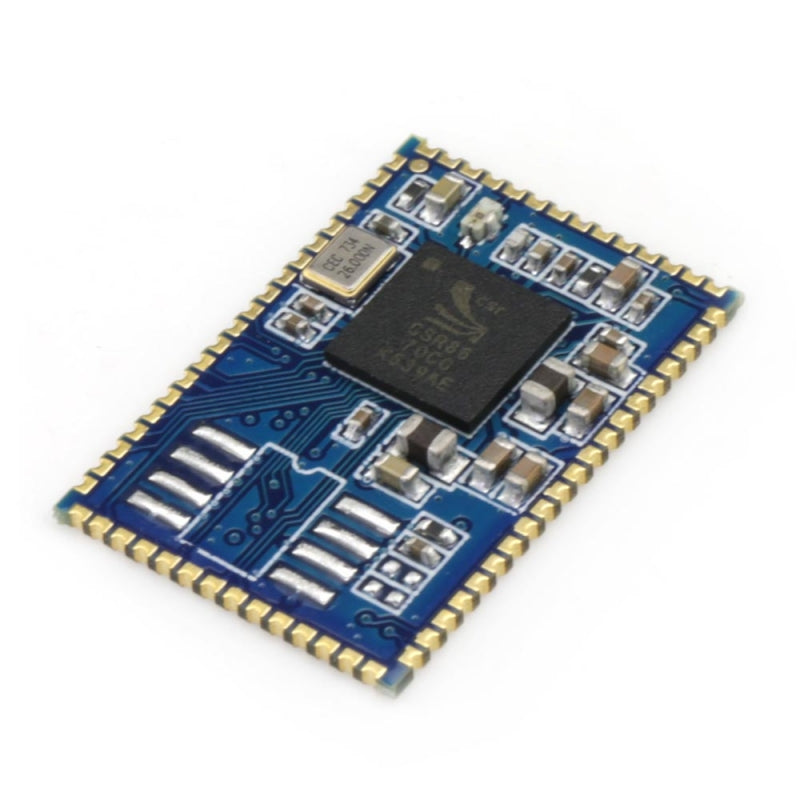

TS8675 is a high performance, cost effective, low power and compact solution Bluetooth 5.0 modules. The Bluetooth module provides a complete 2.4GHz Bluetooth system based on the BlueCore CSR8675 chipset which is a single chip radio and baseband IC for Bluetooth 2.4GHz systems. This module is fully compliant to Bluetooth v5.0 for audio communications. The default firmware inside is a broadcasting multipoint connection firmware.

Features:

               Bluetooth Profiles

• Bluetooth v5.0 specification support
• Qualcomm® Bluetooth® Low Energy secure connection
• A2DP v1.3.1
• AVRCP v1.6
• HFP v1.7
• HSP v1.2
• MAP v1.1
• PBAP v1.1.1
• DID v1.1
• QTIL's proximity pairing and QTIL's proximity connection


Music Enhancements

• aptX, aptX Low Latency, SBC and AAC （Point to Point connection firmware）
• TrueWireless Stereo (TWS)
• Configurable Signal Detection to trigger events
• 1 bank of up to 10-stage Speaker Parametric EQ
• 6 banks of up to 5-stage User Parametric EQ for music enhancement
• Qualcomm® meloD™ Expansion audio processing: 3D stereo widening
• Compander to compress or expand the dynamic range of the audio
• Post Mastering to improve DAC fidelity
• Dual I²S outputs with crossover

Additional Functionality

• Support for multi-language programmable audio prompts
• CSR's proximity pairing and CSR's proximity connection
• Multipoint support for A2DP connection to 2 A2DP sources for music playback
• Talk-time extension
• Slim module with 15mm x 22mm x 2.0mm

Applications:

• Stereo Headsets
• Wired Stereo headsets and headphones
• Portable Bluetooth Stereo speakers

Documents:

• Datasheet
• Reference design
• Eagle Library
• Analog+I2S firmware
• Analog+SPDIF firmware
